13-Kanal High END DSP mit Hi-Res Audio Verarbeitung in 24bit/96kHz und Fiir Filtern
Der Audison Bit One HD Virtuoso bietet neben 13 Cinchausgängen 2 optische SP/DIF sowie 12 analoge Eingänge mit einer internen Signalverarbeitung von 24bit und 96kHz. Er wird mit dem DRC MP ausgeliefert und ist der zur Zeit wohl flexibelste und hochwertigste DSP mit dem Maximum an Ausgangskanälen. Er eignet sich optimal um in bestehenden Werkssystemen mit Mehrkanalverstärkern als Bindeglied zur Nachrüstung von Endstufen zu fungieren, oder um einfach perfekten Hi-Res Sound von digitalen Quellen wiederzugeben.
Technische Daten:
Analog Eingänge: 12
optische Eingänge: 2 SP/DIF
High Level Autosense
Ausgänge: 13 RCA
2x AD/AC Link für AD Link Verstärker

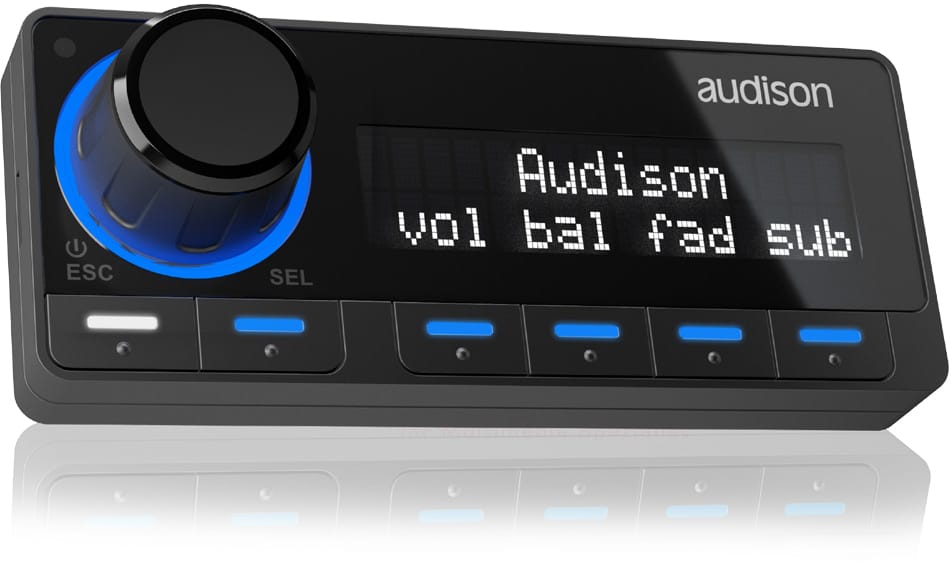

Anschluß für DRC MP (im Lieferumfang)
Eingangssignale bis 24bit/196kHz
<a style="float:right;" href="https://www.carhifi-store-buende.de/media/pdf/0d/4f/fa/2016_bit_one_hd_carhifi.pdf" target=blank" title="Bit One HD Testbericht Car&Hifi"><img src="/download/carhifi-test.jpg" alt="Bit One HD Testbericht Car&Hifi" title=Bit One HD Testbericht Car&Hifi"></a>
Weitere Details finden Sie im Benutzerhandbuch zum Download
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING. 12 CHANNELS AMPLIFIER WITH DSP - 1080W
Discription:
More Power
More Information
More Control
More Inputs
More Speed
More Tools
More Capabilities
More Guidance
More Flexibility
all in one state-of-the-art platform!
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF M12.14 bit boasts twelve high-fidelity amplified channels 60 x 12 @4Ω*, 90W x 12 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 180 x 6 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL
Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The two processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.
ADVANCED OEM INTEGRATION CAPABILITIES
Forza’s eight analog inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems. If more analog inputs are required, the optional F4IN expansion card adds four additional analog input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation technology (USS) yields maximum compatibility with any OEM Source, without muting or instability.
AF M12.14 bit includes a set of four high-quality cables supplied with a protective printed strip placed upstream of the Molex connectors to increase the resistance to torsion:
One 8 stereo RCAs interconnection for after-market sources with PRE-OUT outputs
One featuring 8 pairs of labeled cables for the connection to high-level output OEM sources
One includes twelve pairs of labeled cables to connect the speakers to the amplifier
One Control interconnection to control memory selection and remote power-on.
Technical Specification:
POWER SUPPLY
Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
Pulse operating voltage: 6.5 ÷ 17.5 VDC
Idling current: 1.68 A
Standby current draw: 1.7 mA
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 45 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 80%
AMPLIFIER STAGE
Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.03%
Damping factor @ 1 kHz , 4Ω, 2 VRMS: 80
Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98 dBA
S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
Minimum load impedance: 12Ch: 2Ω
6Ch – (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12): 4Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD:
· 12 Ch @ 4Ω: 60 W x 12
· 12 Ch @ 2Ω: 90 W x 12
· 4Ch (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4Ω: 180 W x 6
CEA SPECIFICATIONS
Output power @ 4Ω, 1% THD+N, 14.4 V: 45 W
SN ratio (ref. 1 W output): 75.5 dB
INPUTS / OUTPUTS
Pre-In (8 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.)
Speaker-In (8 Ch + additional 4 Ch with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.)
Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
DSP Preout (2 Ch): 5V RMS
DIGITAL SIGNAL PROCESSOR
Audio DSP and converters: Analog Devices ADAU1467 automotive qualified audio processor. Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
Filter type: Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope:
Linkwitz-Riley @ 12/24/36/48 dB/Oct.
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
QLP @ 6 dB/Oct.
Crossover frequency: 20 Hz ÷ 20 kHz
Phase control: 0° / 180°, All-Pass filters
Analog Input Equalizer (20 Hz ÷ 20 kHz): 12 Biquad + Delay
Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
Input and Output Real Time Audio Monitor: RTA
Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
Time Alignment Delay: 0 ÷ 15 ms
CONTROL CONNECTIONS
Audison DRCC port: Input for DRCC remote control (Optional)
Audison ADC port: Manage other Audison devices that support this standard
Control 1 wire: Customizable functions (+ 12 V activated)
Control 2 wire: Customizable functions (+ 12 V activated)
GENERAL REQUIREMENTS
PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
Software/ PC requirements: Windows 10, Windows 11 (min. res. 1024 x 768
Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
SIZE / WEIGHT
Max size W x H x D (cm/inch): 24,0 x 4,7 x 15,6 / 9.44 x 1.85 x 6.14
Weight (kg/lb): 2,04 / 4.49
FEATURES:
adt: Enjoy the improved audio performance of the latest generation Audison D-Class technology.
Fully bridgeable: Maximum versatility thanks to the bridging option for each pair of channels.
dpd: Forza amplifiers have two independent power supplies: the audio amplifier power supply is loosely regulated, which allows superior dynamic performance. The DSP power supply is stiffly regulated, which maintains DSP microprocessor operation even during lower-voltage transient states (i.e., start/stop operation).
Hi-Res: Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz.
Full DA HD: Pure digital signal transfer with a resolution up to 24bit/96 kHz.
qio: Quick I/O Configuration speeds up system definition and signal routing.

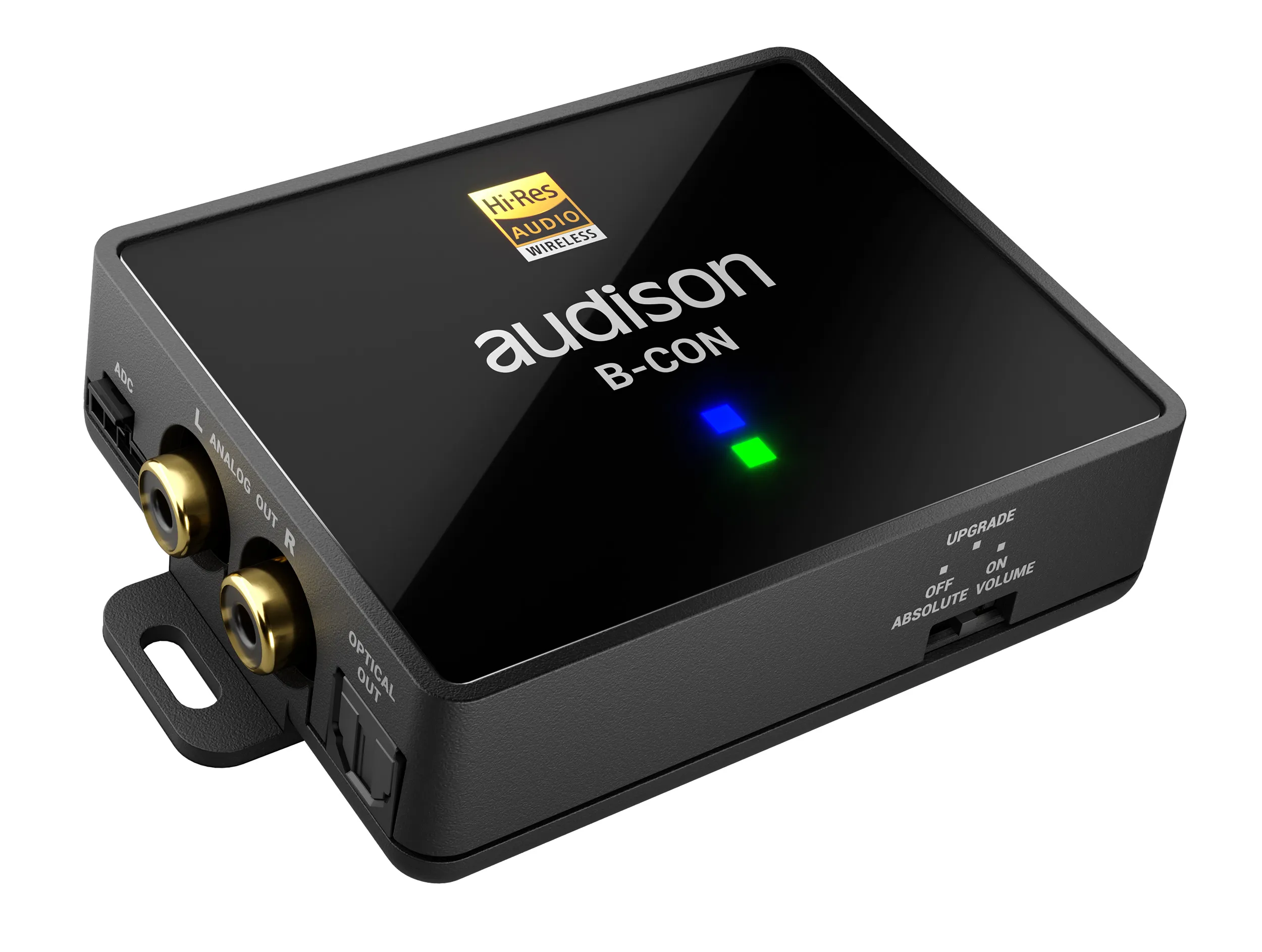

absolute Volume: When connected with Audison B-CON hi-res Bluetooth receiver, this feature manages the Master Volume of the Forza amp thus ensuring full dynamic range signal at the input.
maestro AR: iDatalink Maestro AR native support for a total integration with OEM infotainment.
8 inputs: Equipped with eight analog inputs, to support total connectivity even with the most complex OEM systems.
esa: Electrical Signal Analysis ensures proper integration and correction for each input channel.
de-eg: Automatically sums and reverses OEM equalization.
de-time: Input delay compensation of time-delayed factory outputs prior to signal summing.
de-phase: Allows left and right inputs to match in phase before tuning, even if OEM phase processing has been used.
USS: Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
bit-Drive: Next-generation bit Drive software platform - developed for this family of products - simplifies every control and function.
14 dsp outputs: 14 DSP-processed output channels for a total control.
arta: The acoustic analysis integrates the response graph into the equalizer display ensuring efficient tuning and great sound, compatible with any 24-bit USB microphone.
erta: The electrical analysis integrates the response graph into the input equalizer display, ensuring efficient tuning.
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING. 5 CHANNELS AMPLIFIER WITH DSP - 1200W
Discription:
More Power
More Information
More Control
More Inputs
More Speed
More Tools
More Capabilities
More Guidance
More Flexibility
all in one state-of-the-art platform!
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF M5.11 bit boasts five high-fidelity amplified channels 100W x 4 + 400W @4Ω*, 150WP x 4 + 600W @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 2 + 400W @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL
Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The two processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.
ADVANCED OEM INTEGRATION CAPABILITIES
Forza’s eight analog inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems. If more analog inputs are required, the optional F4IN expansion card adds four additional analog input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation technology (USS) yields maximum compatibility with any OEM Source, without muting or instability.
AF M5.11 bit includes a set of four high-quality cables supplied with a protective printed strip placed upstream of the Molex connectors to increase the resistance to torsion:
One 8 stereo RCAs interconnection for after-market sources with PRE-OUT outputs
One featuring 8 pairs of labeled cables for the connection to high-level output OEM sources
One includes twelve pairs of labeled cables to connect the speakers to the amplifier
One Control interconnection to control memory selection and remote power-on.
Technical Specification:
POWER SUPPLY
Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
Pulse operating voltage: 6.5 ÷ 17.5 VDC
Idling current: 1.5 A
Standby current draw: 1.5 mA
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 53.4 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 80.5%
AMPLIFIER STAGE
Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.02%
Damping factor @ 100 kHz , 4Ω, 2 VRMS SUB Channel): 140
Damping factor @ 1 kHz , 4Ω, 2 VRMS: 140
Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98 dBA
S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
Minimum load impedance: 5Ch: 2Ω 3Ch: 4Ω + 4Ω + 2Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD:
· 5 Ch @ 4Ω: 100 W x 4 + 400 W x 1
· 5 Ch @ 2Ω: 150 W x 4 + 600 W x 1
3 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2 + 400 W x 1
· 3 Ch (Bridge 1/2; 3/4) @ 4Ω / 2Ω: 300 W x 2 + 600 W x 1
CEA SPECIFICATIONS
Output power @ 4Ω, 1% THD+N, 14.4 V: 85 W x 4 + 340 W x 1
SN ratio (ref. 1 W output): 78 dB
INPUTS / OUTPUTS
Pre-In (8 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.)
Speaker-In (8 Ch + additional 4 Ch with optional F4IN card): 2.2 χ 22 VRMS (5 Ω Imp.)
Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
DSP Preout (2 Ch): 5V RMS
DIGITAL SIGNAL PROCESSOR
Audio DSP and converters: Analog Devices ADAU1467 automotive qualified audio processor. Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
Filter type: Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope:
Linkwitz-Riley @ 12/24/36/48 dB/Oct.
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
QLP @ 6 dB/Oct.
Crossover frequency: 20 Hz χ 20 kHz
Phase control: 0° / 180°, All-Pass filters
Analog Input Equalizer (20 Hz χ 20 kHz): 12 Biquad + Delay
Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz χ 20 kHz
Input and Output Real Time Audio Monitor: RTA
Time Alignment Distance: 0 χ 510 cm / 0 χ 200.8 inches
Time Alignment Delay: 0 χ 15 ms
CONTROL CONNECTIONS
Audison DRCC port: Input for DRCC remote control (Optional)
Audison ADC port: Manage other Audison devices that support this standard
Control 1 wire: Customizable functions (+ 12 V activated)
Control 2 wire: Customizable functions (+ 12 V activated)
GENERAL REQUIREMENTS
PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
Software/ PC requirements: Windows 10, Windows 11 (min. res. 1024 x 768
Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
SIZE / WEIGHT
Max size W x H x D (cm/inch): 24,0 x 4,7 x 15,6 / 9.44 x 1.85 x 6.14
Weight (kg/lb): 2,04 / 4.49
FEATURES:
adt: Enjoy the improved audio performance of the latest generation Audison D-Class technology.
Fully bridgeable: Maximum versatility thanks to the bridging option for each pair of channels.
dpd: Forza amplifiers have two independent power supplies: the audio amplifier power supply is loosely regulated, which allows superior dynamic performance. The DSP power supply is stiffly regulated, which maintains DSP microprocessor operation even during lower-voltage transient states (i.e., start/stop operation).
Hi-Res: Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz.
Full DA HD: Pure digital signal transfer with a resolution up to 24bit/96 kHz.
qio: Quick I/O Configuration speeds up system definition and signal routing.
absolute Volume: When connected with Audison B-CON hi-res Bluetooth receiver, this feature manages the Master Volume of the Forza amp thus ensuring full dynamic range signal at the input.
maestro AR: iDatalink Maestro AR native support for a total integration with OEM infotainment.
8 inputs: Equipped with eight analog inputs, to support total connectivity even with the most complex OEM systems.
esa: Electrical Signal Analysis ensures proper integration and correction for each input channel.
de-eg: Automatically sums and reverses OEM equalization.
de-time: Input delay compensation of time-delayed factory outputs prior to signal summing.
de-phase: Allows left and right inputs to match in phase before tuning, even if OEM phase processing has been used.
USS: Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
bit-Drive: Next-generation bit Drive software platform - developed for this family of products - simplifies every control and function.
14 dsp outputs: 14 DSP-processed output channels for a total control.
arta: The acoustic analysis integrates the response graph into the equalizer display ensuring efficient tuning and great sound, compatible with any 24-bit USB microphone.
erta: The electrical analysis integrates the response graph into the input equalizer display, ensuring efficient tuning.
B-Ware mit geringen Gebrauchspuren, komplett OVP
1200W 8-Kanal DSP Verstärker Audison AP F8.9bit
Leistungsupgrade zur Audison AP 8.9bit - die neue Forza Endstufe setzt in allen Belangen noch einmal ein deutliches Zeichen. Mehr Power, mehr Stabilität und noch feinerer Klang zeichnen die AP F8.9bit aus. Die neue AP F8.9 bit ist ideal für alle Anwendungen und OEM Integrationen bei denen viel Leistung und die Flexibilität eines 9 Kanal DSP´s gebraucht wird. Das Wort „Forza“ bedeutet “ im Italienischen „Kraft“ und das trifft es perfekt, 8 x 85 Watt RMS @ 4 Ohm oder 4 x 260 Watt (RMS @ 4 Ohm) gebrückt mit einem hervorragenden Leistung/Endstufengröße Verhältnis. Der integrierte Prozessor ist mit 7 Voreinstellungen bestückt für ein einzigartiges Plug & Sound Erlebnis. Dank der Audison USS Technologie (Universeller Lautsprecher Simulator) kann die AP F8.9 bit direkt an OEM Headunits mit „Lautsprecher Überwachung“ angeschlossen werden.
<div class="box info alignleft"><div class="box-inner-block"><i class="icon--info2 infoicon"></i>Der AP F8.9 bit ist der größte der DSP Verstärker, er verfügt über 8 frei programmierbare Endstufenkanäle und einen programmierbaren Ausgang zu Erweiterung mit dem AP 1D für eine hohe Subwoofer Power. Die Kanäle des AP F8.9 bit sind 2 Ohm stabil und brückbar, ermöglichen so eine nahezu verdoppelte Ausgangsleistung. Durch die Spannungsstabilität bis 7,5V ist auch der Einsatz bei Fahrzeugen mit Start/Stop Automatik gewährleistet, der Verstärker schaltet beim Fahrzeugstart nicht ab.</div></div>
Technische Daten:
Spannung 6,5 - 17V DC
High Level Input mit Autosense
Low Level Input
Übertragunsbereich 10 - 22kHz
S/N Ratio: 100dBA
9 frei programmierbare Kanäle
Subwoofer Ausgang
optischer Eingang S/P DIF PCM 192kHz/24bit
Anschluß für DRC
Ausgangsleistung:
8x 85/153W an 4/2 Ohm
4x 298W an 4 Ohm
DSP Sektion:
Weiche: Full / Hi Pass / Lo Pass / Band Pass
Weiche Typ: Linkwitz 12/24 dB - Butterworth 6/12/18/24 dB
Frequenzen: 68 Steps von 20 - 20kHz
9 Para EQ Bänder ± 12dB
Laufzeitkorrektur bis 510cm in 2,8cm Schritten, Feinjustage 0,7cm
7 Presets speicherbar
Anschlüsse:
Micro USB
DRC Control
Automatik Speaker Presence
12V Control für optischen Eingang/ AUX/ Master
Abmessungen:
L x H x B (238 x 49 x 155mm)
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING. 4 CH AMPLIFIER WITH 10 CH DSP - 600W
Discription:
More Power
More Information
More Control
More Inputs
More Speed
More Tools
More Capabilities
More Guidance
More Flexibility
all in one state-of-the-art platform!
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF C4.10 bit boasts eight high-fidelity amplified channels 90W x 4 @4Ω*, 150W x 4 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 300 x 2 @4Ω, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL
Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The two processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.
ADVANCED OEM INTEGRATION CAPABILITIES
Forza’s eight analog inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems. If more analog inputs are required, the optional F4IN expansion card adds four additional analog input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation technology (USS) yields maximum compatibility with any OEM Source, without muting or instability.
AF C4.10 bit includes a set of four high-quality cables supplied with a protective printed strip placed upstream of the Molex connectors to increase the resistance to torsion:
One 8 stereo RCAs interconnection for after-market sources with PRE-OUT outputs
One featuring 8 pairs of labeled cables for the connection to high-level output OEM sources
One includes twelve pairs of labeled cables to connect the speakers to the amplifier
One Control interconnection to control memory selection and remote power-on.
Technical Specification:
POWER SUPPLY
Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 1 x 30A
Pulse operating voltage: 6.5 ÷ 17.5 VDC
Idling current: 1.04 A
Standby current draw: 1.4 mA
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 29 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%
AMPLIFIER STAGE
Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.03%
Damping factor @ 1 kHz , 4Ω, 2 VRMS: 95
Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98 dBA
S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
Minimum load impedance: 8Ch: 2Ω 4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω
Continuous Power (RMS) @14.4 VDC, 1% THD:
· 4 Ch @ 4Ω: 90 W x 4
· 4 Ch @ 2Ω: 150 W x 4
· 2 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2
CEA SPECIFICATIONS
Output power @ 4Ω, 1% THD+N, 14.4 V: 90 W x 4
SN ratio (ref. 1 W output): 80 dB
INPUTS / OUTPUTS
Pre-In (8 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.)
Speaker-In (8 Ch + additional 4 Ch with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.)
Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
DSP Preout (2 Ch): 5V RMS
DIGITAL SIGNAL PROCESSOR
Audio DSP and converters: Analog Devices ADAU1467 automotive qualified audio processor. Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
Filter type: Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope:
Linkwitz-Riley @ 12/24/36/48 dB/Oct.
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
QLP @ 6 dB/Oct.
Crossover frequency: 20 Hz ÷ 20 kHz
Phase control: 0° / 180°, All-Pass filters
Analog Input Equalizer (20 Hz ÷ 20 kHz): 12 Biquad + Delay
Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
Input and Output Real Time Audio Monitor: RTA
Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
Time Alignment Delay: 0 ÷ 15 ms
CONTROL CONNECTIONS
Audison DRCC port: Input for DRCC remote control (Optional)
Audison ADC port: Manage other Audison devices that support this standard
Control 1 wire: Customizable functions (+ 12 V activated)
Control 2 wire: Customizable functions (+ 12 V activated)
GENERAL REQUIREMENTS
PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
Software/ PC requirements: Windows 10, Windows 11 (min. res. 1024 x 768
Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
SIZE / WEIGHT
Max size W x H x D (cm/inch): 20,0 x 4,7 x 13,4 / 7.87 x 1.85 x 5.27
Weight (kg/lb): 1.49 / 3.28
FEATURES:
adt: Enjoy the improved audio performance of the latest generation Audison D-Class technology.
Fully bridgeable: Maximum versatility thanks to the bridging option for each pair of channels.
dpd: Forza amplifiers have two independent power supplies: the audio amplifier power supply is loosely regulated, which allows superior dynamic performance. The DSP power supply is stiffly regulated, which maintains DSP microprocessor operation even during lower-voltage transient states (i.e., start/stop operation).
Hi-Res: Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz.
Full DA HD: Pure digital signal transfer with a resolution up to 24bit/96 kHz.
qio: Quick I/O Configuration speeds up system definition and signal routing.
absolute Volume: When connected with Audison B-CON hi-res Bluetooth receiver, this feature manages the Master Volume of the Forza amp thus ensuring full dynamic range signal at the input.
maestro AR: iDatalink Maestro AR native support for a total integration with OEM infotainment.
8 inputs: Equipped with eight analog inputs, to support total connectivity even with the most complex OEM systems.
esa: Electrical Signal Analysis ensures proper integration and correction for each input channel.
de-eg: Automatically sums and reverses OEM equalization.
de-time: Input delay compensation of time-delayed factory outputs prior to signal summing.
de-phase: Allows left and right inputs to match in phase before tuning, even if OEM phase processing has been used.
USS: Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
bit-Drive: Next-generation bit Drive software platform - developed for this family of products - simplifies every control and function.
10 dsp outputs: 10 DSP-processed output channels for total control.
6 pre-outs: 6 native pre-out channels for maximum versatility.
arta: The acoustic analysis integrates the response graph into the equalizer display ensuring efficient tuning and great sound, compatible with any 24-bit USB microphone.
erta: The electrical analysis integrates the response graph into the input equalizer display, ensuring efficient tuning.
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING. 8 CH AMPLIFIER WITH 14 CH DSP - 800W
Discription:
More Power
More Information
More Control
More Inputs
More Speed
More Tools
More Capabilities
More Guidance
More Flexibility
all in one state-of-the-art platform!
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 4 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL
Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The two processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.
ADVANCED OEM INTEGRATION CAPABILITIES
Forza’s eight analog inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems. If more analog inputs are required, the optional F4IN expansion card adds four additional analog input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation technology (USS) yields maximum compatibility with any OEM Source, without muting or instability.
AF C8.14 bit includes a set of four high-quality cables supplied with a protective printed strip placed upstream of the Molex connectors to increase the resistance to torsion:
One 8 stereo RCAs interconnection for after-market sources with PRE-OUT outputs
One featuring 8 pairs of labeled cables for the connection to high-level output OEM sources
One includes twelve pairs of labeled cables to connect the speakers to the amplifier
One Control interconnection to control memory selection and remote power-on.
Technical Specification:
POWER SUPPLY
Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 1 x 35A
Pulse operating voltage: 6.5 ÷ 17.5 VDC
Idling current: 1.3 A
Standby current draw: 1.5 mA
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 34 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%
AMPLIFIER STAGE
Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.05%
Damping factor @ 1 kHz , 4Ω, 2 VRMS: 85
Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98.5 dBA
S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
Minimum load impedance: 8Ch: 2Ω 4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω
Continuous Power (RMS) @14.4 VDC, 1% THD:
· 8 Ch @ 4Ω: 65 W x 8
· 8 Ch @ 2Ω: 100 W x 8
· 4Ch (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4Ω: 200 W x 4
CEA SPECIFICATIONS
Output power @ 4Ω, 1% THD+N, 14.4 V: 55 W x 8
SN ratio (ref. 1 W output): 80 dB
INPUTS / OUTPUTS
Pre-In (8 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.)
Speaker-In (8 Ch + additional 4 Ch with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.)
Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
DSP Preout (2 Ch): 5V RMS
DIGITAL SIGNAL PROCESSOR
Audio DSP and converters: Analog Devices ADAU1467 automotive qualified audio processor. Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
Filter type: Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope:
Linkwitz-Riley @ 12/24/36/48 dB/Oct.
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
QLP @ 6 dB/Oct.
Crossover frequency: 20 Hz χ 20 kHz
Phase control: 0° / 180°, All-Pass filters
Analog Input Equalizer (20 Hz χ 20 kHz): 12 Biquad + Delay
Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz χ 20 kHz
Input and Output Real Time Audio Monitor: RTA
Time Alignment Distance: 0 χ 510 cm / 0 χ 200.8 inches
Time Alignment Delay: 0 χ 15 ms
CONTROL CONNECTIONS
Audison DRCC port: Input for DRCC remote control (Optional)
Audison ADC port: Manage other Audison devices that support this standard
Control 1 wire: Customizable functions (+ 12 V activated)
Control 2 wire: Customizable functions (+ 12 V activated)
GENERAL REQUIREMENTS
PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
Software/ PC requirements: Windows 10, Windows 11 (min. res. 1024 x 768
Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
SIZE / WEIGHT
Max size W x H x D (cm/inch): 20,0 x 4,7 x 13,4 / 7.87 x 1.85 x 5.27
Weight (kg/lb): 1.49 / 3.28
FEATURES:
adt: Enjoy the improved audio performance of the latest generation Audison D-Class technology.
Fully bridgeable: Maximum versatility thanks to the bridging option for each pair of channels.
dpd: Forza amplifiers have two independent power supplies: the audio amplifier power supply is loosely regulated, which allows superior dynamic performance. The DSP power supply is stiffly regulated, which maintains DSP microprocessor operation even during lower-voltage transient states (i.e., start/stop operation).
Hi-Res: Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz.
Full DA HD: Pure digital signal transfer with a resolution up to 24bit/96 kHz.
qio: Quick I/O Configuration speeds up system definition and signal routing.
absolute Volume: When connected with Audison B-CON hi-res Bluetooth receiver, this feature manages the Master Volume of the Forza amp thus ensuring full dynamic range signal at the input.
maestro AR: iDatalink Maestro AR native support for a total integration with OEM infotainment.
8 inputs: Equipped with eight analog inputs, to support total connectivity even with the most complex OEM systems.
esa: Electrical Signal Analysis ensures proper integration and correction for each input channel.
de-eg: Automatically sums and reverses OEM equalization.
de-time: Input delay compensation of time-delayed factory outputs prior to signal summing.
de-phase: Allows left and right inputs to match in phase before tuning, even if OEM phase processing has been used.
USS: Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
bit-Drive: Next-generation bit Drive software platform - developed for this family of products - simplifies every control and function.
14 dsp outputs: 14 DSP-processed output channels for a total control.
6 pre-outs: 6 native pre-out channels for maximum versatility.
arta: The acoustic analysis integrates the response graph into the equalizer display ensuring efficient tuning and great sound, compatible with any 24-bit USB microphone.
erta: The electrical analysis integrates the response graph into the input equalizer display, ensuring efficient tuning.
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING. MONO AMPLIFIER - 1200W
Discription:
More Power
More Information
More Control
More Inputs
More Speed
More Tools
More Capabilities
More Guidance
More Flexibility
all in one state-of-the-art platform!
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON

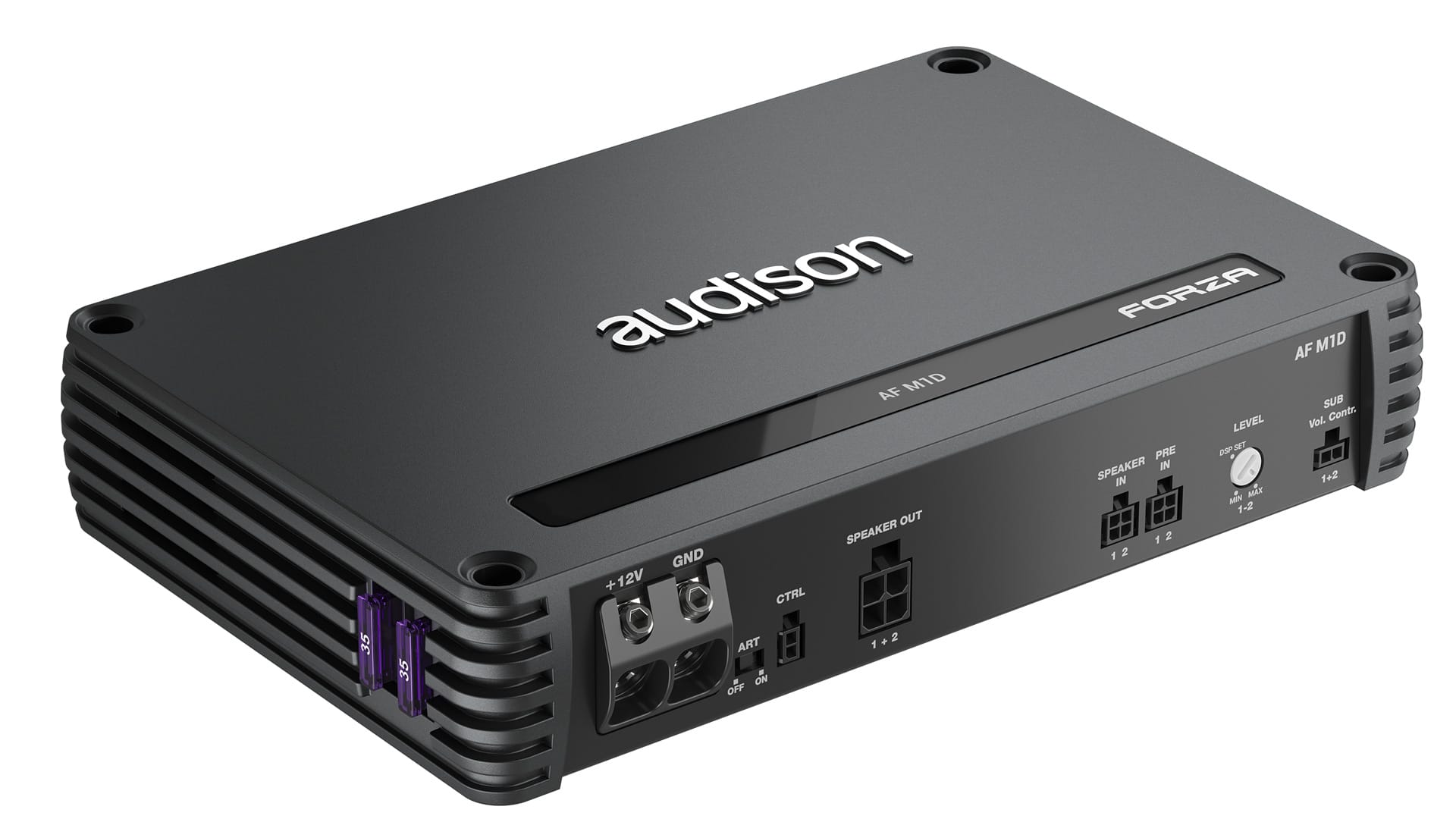

AF M1D boasts one high-fidelity amplified channel 600W @4Ω*, 1000W @2Ω*, and 1200W @1Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Technical Specification:
POWER SUPPLY
Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35A
Pulse operating voltage: 6.5 ÷ 17.5 VDC
Idling current: 1.3 A
Standby current draw: 0.005 mA
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 65 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%
AMPLIFIER STAGE
Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.1%
Damping factor @ 1 kHz , 4Ω, 2 VRMS: 140
Bandwidth @ -3 dB: 10 Hz ÷ 500 Hz
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 105 dBA
Minimum load impedance: 1 Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD:
· 1 Ch @ 4Ω: 600 W
· 1 Ch @ 2Ω: 1000 W
· 1 Ch @ 1Ω: 1200 W
CEA SPECIFICATIONS
Output power @ 4Ω, 1% THD+N, 14.4 V: 600 W
SN ratio (ref. 1 W output): 80,5 dB
INPUTS / OUTPUTS / FILTERS
Inputs Pre-In / Speaker-In
Input sensitivity Pre-In 0.6 ÷ 6 VRMS
Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
SUB remote Volume Control (optional) ±12 dB
GENERAL REQUIREMENTS
Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
SIZE / WEIGHT
Max size W x H x D (cm/inch): 24,0 x 4,7 x 15,6 / 9.44 x 1.85 x 6.14
Weight (kg/lb): 2.04 / 4.49
FEATURES:
Hi Res Audio: Extended audio band up to 40 kHz.
USS: Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
Artikel vorbestellt
Dieses Produkt erscheint am Samstag, 16. September 2023.
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING. 6 Channels AMPLIFIER - 1320W
Discription:
More Power
More Information
More Control
More Inputs
More Speed
More Tools
More Capabilities
More Guidance
More Flexibility
all in one state-of-the-art platform!
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF M6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance.
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Technical Specification:
POWER SUPPLY
Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35A
Pulse operating voltage: 6.5 ÷ 17.5 VDC
Idling current: 1.0 A
Standby current draw: 0.009 mA
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 67 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%
AMPLIFIER STAGE
Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.04%
Damping factor @ 1 kHz , 4Ω, 2 VRMS: 160
Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 103 dBA
Minimum load impedance: 6Ch: 2Ω 3Ch – (Bridge 1/2; 3/4; 5/6): 4Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD:
· 6 Ch @ 4Ω: 135 W x 6
· 6 Ch @ 2Ω: 220 W x 6
· 3 Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω:: 440 W x 3
CEA SPECIFICATIONS
Output power @ 4Ω, 1% THD+N, 14.4 V: 130 W x 4
SN ratio (ref. 1 W output): 80 dB
INPUTS / OUTPUTS / FILTERS
Inputs Pre-In / Speaker-In
Input sensitivity Pre-In 0.6 ÷ 6 VRMS
Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
SUB remote Volume Control (optional) ±12 dB
GENERAL REQUIREMENTS
Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
SIZE / WEIGHT
Max size W x H x D (cm/inch): 24,0 x 4,7 x 15,6 / 9.44 x 1.85 x 6.14
Weight (kg/lb): 1.95 / 4.3
Mit der Audison Prima Line erhalten Sie Produkte für ein maximales Klangerlebnis bei geringem Platzbedarf und großer Erweiterbarkeit. Ca. 95% aller aktuell ausgelieferten PKW verfügen über ein fest eingebautes Infotainmentsystem mit guter Usability und Schnittstellen zu den modernen Medien wie iPhone, DAB+ und USB mp3. Leider wird der Sound dabei meistens vernachlässigt. Die Verstärker und Lautsprecher der Audison Prima Line ermöglichen eine Anbindung an die bestehenden Systeme und bieten Ihnen durch eine perfekte Abstimmung eine neue musikalische Dimension!
Der AP 8.9 bit ist der größte der DSP Verstärker, er verfügt über 8 frei programmierbare Endstufenkanäle und einen programmierbaren Ausgang zu Erweiterung mit dem AP 1D für eine hohe Subwoofer Power. Die Kanäle des AP 8.9 bit sind 2 Ohm stabil und brückbar, ermöglichen so eine nahezu verdoppelte Ausgangsleistung. Durch die Spannungsstabilität bis 7,5V ist auch der Einsatz bei Fahrzeugen mit Start/Stop Automatik gewährleistet, der Verstärker schaltet beim Fahrzeugstart nicht ab.
Technische Daten:
Spannung 7,5 - 15V DC
High Level Input mit Autosense
Low Level Input
Übertragunsbereich 10 - 22kHz
S/N Ratio: 95dBA
9 frei programmierbare Kanäle
Subwoofer Ausgang
optischer Eingang S/P DIF PCM 96kHz/24bit
Anschluß für DRC
Ausgangsleistung:
8x 35/65W an 4/2 Ohm
4x 130W an 4 Ohm
DSP Sektion:
Weiche: Full / Hi Pass / Lo Pass / Band Pass
Weiche Typ: Linkwitz 12/24 dB - Butterworth 6/12/18/24 dB
Frequenzen: 68 Steps von 20 - 20kHz
9 Para EQ Bänder ± 12dB
Laufzeitkorrektur bis 510cm in 2,8cm Schritten, Feinjustage 0,7cm
7 Presets speicherbar
Anschlüsse:
Micro USB
DRC Control
Automatik Speaker Presence
12V Control für optischen Eingang/ AUX/ Master
Abmessungen:
L x H x B (191 x 34 x 131mm)
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING. 4 Channels AMPLIFIER - 1040W
Discription:
More Power
More Information
More Control
More Inputs
More Speed
More Tools
More Capabilities
More Guidance
More Flexibility
all in one state-of-the-art platform!
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF M4D boasts four high-fidelity amplified channels 160W x 4 @4Ω*, 260W x 4 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 520W x 2 @4Ω*, guaranteeing flexible and powerful performance.
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Technical Specification:
POWER SUPPLY
Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
Pulse operating voltage: 6.5 ÷ 17.5 VDC
Idling current: 1.3 A
Standby current draw: 0.007 mA
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 52 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 83%
AMPLIFIER STAGE
Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.05%
Damping factor @ 1 kHz , 4Ω, 2 VRMS: 160
Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 103 dBA
Minimum load impedance: 4 Ch: 2Ω 2 Ch – (Bridge 1/2; 3/4): 4Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD:
· 4 Ch @ 4Ω: 160 W x 4
· 4 Ch @ 2Ω: 260 W x 4
· 2 Ch (Bridge 1/2; 3/4) @ 4Ω: 520 W x 2
CEA SPECIFICATIONS
Output power @ 4Ω, 1% THD+N, 14.4 V: 160 W x 4
SN ratio (ref. 1 W output): 80 dB
INPUTS / OUTPUTS / FILTERS
Inputs Pre-In / Speaker-In
Input sensitivity Pre-In 0.6 ÷ 6 VRMS
Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
SUB remote Volume Control (optional) ±12 dB
GENERAL REQUIREMENTS
Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
SIZE / WEIGHT
Max size W x H x D (cm/inch): 24,0 x 4,7 x 15,6 / 9.44 x 1.85 x 6.14
Weight (kg/lb): 2.04 / 4.49
Mit der Audison Prima Line erhalten Sie Produkte für ein maximales Klangerlebnis bei geringem Platzbedarf und großer Erweiterbarkeit. Ca. 95% aller aktuell ausgelieferten PKW verfügen über ein fest eingebautes Infotainmentsystem mit guter Usability und Schnittstellen zu den modernen Medien wie iPhone, DAB+ und USB mp3. Leider wird der Sound dabei meistens vernachlässigt. Die Verstärker und Lautsprecher der Audison Prima Line ermöglichen eine Anbindung an die bestehenden Systeme und bieten Ihnen durch eine perfekte Abstimmung eine neue musikalische Dimension!
Der AP 5.9 bit ist der klassische 2-Wege Front + Subwoofer DSP Verstärker, er verfügt über 5 frei programmierbare Endstufenkanäle und 4 programmierbare Ausgänge zur Erweiterung mit dem AP 4D für eine noch höhere Systemleistung. Die Kanäle des AP 5.9 bit sind 2 Ohm stabil, ermöglichen so eine nahezu verdoppelte Ausgangsleistung. Durch die Spannungsstabilität bis 7,5V ist auch der Einsatz bei Fahrzeugen mit Start/Stop Automatik gewährleistet, der Verstärker schaltet beim Fahrzeugstart nicht ab.
Technische Daten:
Spannung 7,5 - 15V DC
6-Kanal High Level Input mit Autosense
Low Level Input
Übertragunsbereich 10 - 22kHz
S/N Ratio: 95dBA
9 frei programmierbare Kanäle
4-Kanal Ausgang
optischer Eingang S/P DIF PCM 96kHz/24bit
Anschluß für DRC
Ausgangsleistung:
2x 20/35W + 2x 50/85W + 1x 140/280W an 4/2 Ohm
DSP Sektion:
Weiche: Full / Hi Pass / Lo Pass / Band Pass
Weiche Typ: Linkwitz 12/24 dB - Butterworth 6/12/18/24 dB
Frequenzen: 68 Steps von 20 - 20kHz
9 Para EQ Bänder ± 12dB
Laufzeitkorrektur bis 510cm in 2,8cm Schritten, Feinjustage 0,7cm
7 Presets speicherbar
Anschlüsse:
Micro USB
DRC Control
Automatik Speaker Presence
12V Control für optischen Eingang/ AUX/ Master
Abmessungen:
L x H x B (191 x 34 x 131mm)
Mit der Audison Prima Line erhalten Sie Produkte für ein maximales Klangerlebnis bei geringem Platzbedarf und großer Erweiterbarkeit. Ca. 95% aller aktuell ausgelieferten PKW verfügen über ein fest eingebautes Infotainmentsystem mit guter Usability und Schnittstellen zu den modernen Medien wie iPhone, DAB+ und USB mp3. Leider wird der Sound dabei meistens vernachlässigt. Die Verstärker und Lautsprecher der Audison Prima Line ermöglichen eine Anbindung an die bestehenden Systeme und bieten Ihnen durch eine perfekte Abstimmung eine neue musikalische Dimension!
Der AP 4.9 bit ist der starke Front/Rear DSP Verstärker, er verfügt über 4 frei programmierbare Endstufenkanäle und 5 programmierbare Ausgänge zur Erweiterung mit dem AP 4D und AP 1D für eine maximale Systemleistung von 1560W. Die Kanäle des AP 4.9 bit sind 2 Ohm stabil und brückbar, ermöglichen so eine nahezu verdoppelte Ausgangsleistung. Durch die Spannungsstabilität bis 7,5V ist auch der Einsatz bei Fahrzeugen mit Start/Stop Automatik gewährleistet, der Verstärker schaltet beim Fahrzeugstart nicht ab.
Technische Daten:
Spannung 7,5 - 15V DC
6-Kanal High Level Input mit Autosense
Low Level Input
Übertragunsbereich 10 - 22kHz
S/N Ratio: 95dBA
9 frei programmierbare Kanäle
5-Kanal Ausgang
optischer Eingang S/P DIF PCM 96kHz/24bit
Anschluß für DRC
Ausgangsleistung:
4x 70/130W an 4/2 Ohm
DSP Sektion:
Weiche: Full / Hi Pass / Lo Pass / Band Pass
Weiche Typ: Linkwitz 12/24 dB - Butterworth 6/12/18/24 dB
Frequenzen: 68 Steps von 20 - 20kHz
9 Para EQ Bänder ± 12dB
Laufzeitkorrektur bis 510cm in 2,8cm Schritten, Feinjustage 0,7cm
7 Presets speicherbar
Anschlüsse:
Micro USB
DRC Control
Automatik Speaker Presence
12V Control für optischen Eingang/ AUX/ Master
Abmessungen:
L x H x B (191 x 34 x 131mm)
Der Audison DMI (Digitales Mostbus Interface) ermöglicht die Verbindung zwischen Audison bit one, bit Ten (D), Prima AP bit sowie Thesis Endstufen und Autos, die mit MOST Bus, also LWL-basierten Multimedia-Systemen ausgestattet sind, inklusive der Regelung von Lautstärke, Balance- und Klang direkt von der OEM Headunit aus.
Er wurde speziell entwickelt, um eine Schnittstelle mit dem Audison bit one, bitTen (D) Prozessor, Prima AP bit oder Thesis Verstärkern herzustellen und damit eine direkte digitale Audio-MOST Signalübertragung auf aller höchster Klangqualität zu erreichen. Er verfügt über einen optischen TOSLINK Ausgang für die Audison Geräte. Die Audiodaten werden im PCM-Format und mit 16bit - 44.1kHz oder 48kHz (bezogen auf die Auto Spezifikationen) übertragen, ebenso die Audio-Einstellungen des OEM-Steuergerät auf das Signal: Lautstärke, Balance- und Klangregelung. Lautstärke, Balance- und Klangregler können somit direkt gesteuert werden, ohne die Audison DRC - Digital Remote Control.
DerDMI wird mittels USB auf das jeweilige Fahrzeug programmiert, die passende Software gibt es unter connection.eu.
Der DMI kann in folgenden Fahrzeugen verwendet werden:
Audi
BMW
Mercedes
Mini
Porsche
9-Kanal DSP mit 6-Kanal Eingang und Hi-Res Audio Verarbeitung in 24bit/192kHz
Der Audison bit Nove bietet neben 9 Cinchausgängen 2 optische SP/DIF sowie 6 analoge Eingänge mit einer internen Signalverarbeitung von 24bit und 192kHz. Er wird mit dem DRC AB Digital Remote Control ausgeliefert und ist einer der flexibelsten DSP´s mit einem Maximum an Konfigurationsmöglichkeiten. Er eignet sich optimal um in bestehenden Werkssystemen mit Mehrkanalverstärkern als Bindeglied zur Nachrüstung von Endstufen zu fungieren, oder um einfach perfekten Hi-Res Sound von digitalen Quellen wiederzugeben.
<div class="box info alignleft"><div class="box-inner-block"><i class="icon--info2 infoicon"></i>Der im Audison bit Nove integrierte "Universal Lautsprecher Simulator" macht die Installation an einer Vielzahl von Werkssystemen einfach, denn damit simuliert er dem OEM Radio eine Lautsprecherimpedanz und die Installation gelingt ohne Fehlermeldungen.</div></div>
Pro Ausgangskanal bietet der Audison bit Nove einen parametrischen 10-Band Equalizer mit Butterworth und Linkwitz-Riley Filtern deren Flankensteilheit von 6-24dB/Oct einstellbar ist. Dazu kommt eine fein justierbare Laufzeitkorrektur in 0,7cm Schritten. Der DRC AB rundet die Austattung ab und ermöglicht das direkte Auswählen von 4 Presets und dem Umschalten der Eingangsquellen.
Technische Daten:
Analog Eingänge: 6 High Level, 1 RCA
optische Eingänge: 2 SP/DIF
High Level Autosense
Ausgänge: 9 RCA mit 4V
2x AD/AC Link für AD Link Verstärker
Anschluß für DRC AB (im Lieferumfang)
Eingangssignale bis 24bit/196kHz
Weitere Details finden Sie im Benutzerhandbuch zum Download
Mit der Audison Prima Line erhalten Sie Produkte für ein maximales Klangerlebnis bei geringem Platzbedarf und großer Erweiterbarkeit. Ca. 95% aller aktuell ausgelieferten PKW verfügen über ein fest eingebautes Infotainmentsystem mit guter Usability und Schnittstellen zu den modernen Medien wie iPhone, DAB+ und USB mp3. Leider wird der Sound dabei meistens vernachlässigt. Die Verstärker und Lautsprecher der Audison Prima Line ermöglichen eine Anbindung an die bestehenden Systeme und bieten Ihnen durch eine perfekte Abstimmung eine neue musikalische Dimension!
Der AP 4 D ist eine Erweiterung zu den AP 5.9 bit und AP 4.9 bit DSP Verstärkern und bietet so 4 leistungsstarke Zusatzkanäle . Die Kanäle des AP 4 D sind 2 Ohm stabil und brückbar, ermöglichen so eine nahezu verdoppelte Ausgangsleistung. Durch die Spannungsstabilität bis 7,5V ist auch der Einsatz bei Fahrzeugen mit Start/Stop Automatik gewährleistet, der Verstärker schaltet beim Fahrzeugstart nicht ab.
Technische Daten:
Spannung 7,5 - 15V DC
4-Kanal Low Level Input
Übertragunsbereich 10 - 22kHz
S/N Ratio: 95dBA
Ausgangsleistung:
4x 70/130W an 4/2 Ohm
Abmessungen:
L x H x B (191 x 34 x 131mm)
Mit der Audison Prima Line erhalten Sie Produkte für ein maximales Klangerlebnis bei geringem Platzbedarf und großer Erweiterbarkeit. Ca. 95% aller aktuell ausgelieferten PKW verfügen über ein fest eingebautes Infotainmentsystem mit guter Usability und Schnittstellen zu den modernen Medien wie iPhone, DAB+ und USB mp3. Leider wird der Sound dabei meistens vernachlässigt. Die Verstärker und Lautsprecher der Audison Prima Line ermöglichen eine Anbindung an die bestehenden Systeme und bieten Ihnen durch eine perfekte Abstimmung eine neue musikalische Dimension!
Der AP 1 D ist eine Erweiterung zu den AP 8.9 bit, AP 5.9 bit und AP 4.9 bit DSP Verstärkern und bietet so einen leistungsstarken Subwooferkanal . Sie ist 2 Ohm stabil und ermöglicht so eine nahezu verdoppelte Ausgangsleistung. Durch die Spannungsstabilität bis 7,5V ist auch der Einsatz bei Fahrzeugen mit Start/Stop Automatik gewährleistet, der Verstärker schaltet beim Fahrzeugstart nicht ab.
Technische Daten:
Spannung 7,5 - 15V DC
1-Kanal Low Level Input
Übertragunsbereich 10 - 300Hz
S/N Ratio: 95dBA
Ausgangsleistung:
1x 280/520W an 4/2 Ohm
Abmessungen:
L x H x B (191 x 34 x 131mm)
Hier sind die neuen DSP´s von Audison.

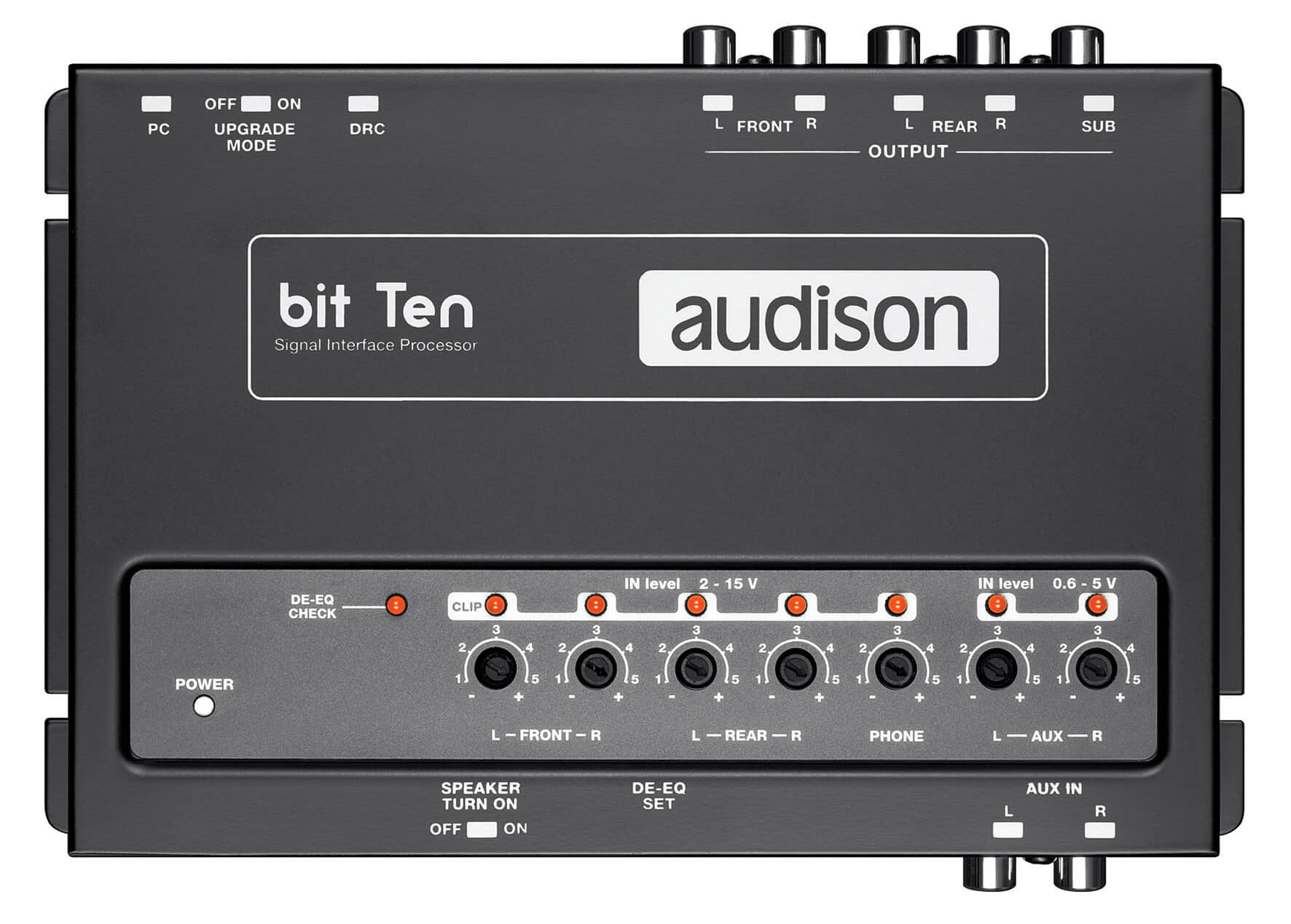

Der bit Ten ist der kleine Bruder des Audison Bit One, mit seinen 5 Kanälen ist er die kostengünstige Version um seine 2 Wege + Sub Anlage perfekt abzustimmen. Mit der Möglichkeit der Anbindung direkt am Werksradio bieten sich so zahlreiche Anwendungsgebiete.
Der bit Ten D ist gegenüber dem bit Ten mit einem digitalen Ein- und Ausgang versehen, zudem wird hier auch die beim bit Ten optionale Fernbedienung DRC (Digital Remote Control) gleich mitgeliefert.
Das Audison B-Con ist der einzige Bluetooth 5.0 Player im automotiven Bereich, der die Zertifizierung „Hi-Res Audio Wireless“ von der Japan Audio Society erhalten hat, und damit State of the Art.
Bei der audiophilen Leistung über Bluetooth geht es in erster Linie um den Codec – das digitale Codierungsformat, das sowohl das sendende als auch das empfangende Gerät zur Übertragung der Daten verwenden. Teil des "Pairing"-Prozesses ist, dass sich die beiden Geräte darauf einigen, welchen Codec sie verwenden werden. Wir können nur einen Codec auswählen, den beide Geräte – der Sender und der Empfänger – beide unterstützen.
Alle Bluetooth-Geräte unterstützen einen Codec namens SBC. Es ist der Basiscodec in der Bluetooth-Spezifikation. Es ist kein verlustfreier Codec. Es ist anständig, aber es ist nicht großartig, und unter bestimmten Bedingungen klingt es ziemlich schlecht. Mit der Bluetooth-Spezifikation können Sie jedoch einen besseren Codec als SBC verwenden - solange er von beiden Geräten unterstützt wird. Einige dieser anderen Codecs versprechen Unterstützung in "hoher Auflösung", aber in Wirklichkeit werden die Verbindungen, die mit diesen Codecs hergestellt werden, oft nicht auf dem höchsten Qualitätsniveau hergestellt - der Benutzer erhält möglicherweise nicht das, was er erwartet. Es ist normalerweise unmöglich zu sehen - dies geschieht unsichtbar auf der drahtlosen Bluetooth-Ebene.
B-CON VERWENDET EINEN LEISTUNGSSTARKEN CODEC NAMENS LDAC
LDAC ist jetzt in vielen Android-Handys sowie in vielen audiophilen digitalen Mediaplayern verfügbar. Wie die meisten Codecs kann die LDAC-Datenverbindung auf verschiedenen Qualitätsstufen implementiert werden, aber auf der höchsten Ebene ist sie ein verlustfreier Codec. Unsere strengen Labortests zeigen, dass über die hochwertigste LDAC-Verbindung der analoge Frequenzgang 40 kHz erreicht – und dies ist der Modus, der dem B-CON die "High Resolution" -Zertifizierung von der JAS eingebracht hat.
Technische Daten:
STROMVERSORGUNG
Spannung: 6 ÷ 24 VDC
Leerlaufstrom: 70 mA bei 12 V
Entfernte IN-Spannung: 3 ÷ 12 VDC (0,5 mA)
+ 12 Remote IN Spannung:/td> 6 ÷ 12 VDC (70 mA)
USB-Mikro 5 V (500 mA)
BLUETOOTH
Art: Bluetooth 5,0 + EDR
Codec: Ldac, AAC, SBC
Profil: Bluetooth A2DP 1,3, AVRCP 1,6
EINGABE
Optisch digital: S/PDIF Optisch (max. 24 Bit/192 kHz)
INPUT/OUTPUT-MANAGEMENT
Digitaler IN-Verzögerungsschalter: 1 sek.
Stromanschluss: AUX SEL Draht, MASTER ENABLE Draht
ADC: Serielle RS232, um den optischen Eingang und die absolute Lautstärkeregelung mit anderen Audison-Geräten zu verwalten, die diesen Ständer unterstützen
Modus-Schalter: Absolute Lautstärke EIN/AUS, Upgrade-Modus
AUSGABE:
optisch digital:
Vom optischen Eingang: 24 Bit 192 KHz
Vom Streaming Bluetooth: 24 Bit 96 kHz max.
Analog:
Bandbreite (MAX) 20 ÷ 48K Hz
Ausgangspegel 2 VRMS
Verzerrung – THD @1 KHz, 1 VRMS 0,003%
S/N RATIO (A bewertet) 100 dBA
GRÖSSE: B x H x T mm / In. 90 x 60,4 x 23 / 3,54 x 2,38 x 0,91
Rein digitale Signalübertragung mit einer Auflösung bis zu 24 Bit / 96 kHz Hi-Res Audio - Gemäß der Definition von HiRes-Audio von JAS (Japan Audio Society - jas-audio.or.jp) erfüllt B-CON die Anforderungen an die Digital-Analog-Wandlung von 24 Bit / 96 kHz.
Neue Multicolor Audison DRC MP (Digital Remote Control Multimedia Play)
Die Fernbedienung ist kompatibel zu allen AC-Link Audison und Hertz Produkten und dient ebenfalls zur Steuerung der Audison Bit Play und Bit Play HD. Als Neuerung ist das Multi-Color Display mit 42 verschiedenen Farben zu nennen, außerdem dient der Drehregler jetzt auch als Joystick. Ein eingebauter Sensor regelt die Displaybeleuchtung passend zur Umgebungshelligkeit. Durch die neue Konstruktion läßt sich der Audison DRC MP auch deutlich einfacher verbauen.
Funktionen:
Default Menu: Master Volume, Subwoofer Volume, Fader, Balance, Source selector (Aux 1, Aux 2, Digital Electric, Digital Optical).
DRC Settings: Keybord color, Keybord brightness, Display brightness, Discreet screen, Mainscreen logo (through the DRC MP joystick).
DSP Memory*: Audison compatible products memories selection.
DSP Settings*: Dynamic EQ, Bass Boost, AutoIN Level Adj.
Player Menu**: bit Play HD off delay.
Navy Command**: Navigation of bit Play HD (through the DRC MP joystick).
* Available only with compatible Audison products connected
**Available only with bit Play HD connected
ISO-VERLÄNGERUNG EIN/AUS 560 CM / 220 IN
Beschreibung:
Prima Verlängerungskabel mit Plug&Play-Anschlüssen ermöglicht völlige Freiheit bei der Positionierung der AP-Bit-Verstärker. Es stehen zwei Erweiterungstypologien zur Verfügung: Nur Eingang , um nur das von der Haupteinheit kommende Audiosignal an die AP-Bit -Verstärker zu senden, oder Eingang/Ausgang, um auch das Ausgangssignal der AP-Bit-Verstärker an das Werks-Audiosystem zu übertragen. Dazu müssen die AP-Verlängerungskabel IN/OUT zusammen mit den AP-Lautsprecher-Ausgangskabeln installiert werden (siehe folgenden Abschnitt). Durch die Verwendung der Ein-/Ausgangserweiterung kann der Installateur frei wählen, welche Konfiguration er übernehmen möchte. Tatsächlich wird dank der AP-Verlängerungskabel jeder einzelne Kanal des AP-Bit-Verstärkers an einen der Lautsprecher im Auto gesendet, also die Der Installateur kann die gewünschte Konfiguration frei vornehmen. Zum Beispiel: Standard-Front (2ch TW+WF), Multi-Amplified-Front (2ch TW + 2ch WF), Multi-Amplified-Front mit 4 überbrückten Kanälen (130 W @ 4 Ohm) für die Woofer (2-Kanal TW + 4-Kanal Bridge WF) und alle die anderen möglichen Kombinationen.
Die C2O-Schnittstelle wandelt die vom koaxialen Digitaleingang und vom analogen AUX-IN kommenden Signale in ein optisches digitales TOSLINK-Ausgangssignal (bis zu 24 Bit / 192 kHz) um.
Der Wandler ermöglicht die Integration der neuen tragbaren Hi-Res-Audio Geräte mit einem koaxialen Digitalausgang (75 Ω) und Smartphones mit einem analogen Ausgang über 3,5-mm Klinke Buchse (auch 4-polig) in unsere Audison-Prozessoren die über einen optischen Digitaleingang mit passender Auflösung verfügen. Dank seiner extremen Kompaktheit kann der C20 versteckt unter dem Armaturenbrett installiert werden, wodurch sich die koaxiale Verkabelung zwischen dem tragbaren Player und dem Prozessor drastisch verkürzt und mit dem Lichtleiter ohne Verlust und ohne Interferenzen bewerkstelligt werden kann.
EIGENSCHAFTEN
Der koaxiale Digitaleingang ist mit einem Wandler Trafo ausgestattet, der die Balance zwischen Eingang und Ausgang erheblich verbessert und elektromagnetische Interferenzen reduziert, die im Fahrgastraum besonders störend sind.
Der AUX-IN-Eingang ist mit einem Vorverstärker mit einer einstellbaren Verstärkung von 0,1 V bis 2 V für eine optimale Anpassung mit jedem Gerät ausgestattet, bevor die Analog-Digital-Wandlung von einem hochwertigen Wandler mit einer Auflösung von 24 Bit / 48 kHz durchgeführt wird.
Für eine maximale Benutzerfreundlichkeit im Auto wählt der C2O selbstständig den Eingang mit Priorität, der dem AUX-IN zugewiesen ist. In der Standardeinstellung wechselt der C2O nach 6 Sekunden ohne Analogsignal zum koaxialen Digitaleingang. Ein interner Schalter ermöglicht es, die Zeitspanne auf 9 oder 12 Sekunden zu verlängern.
AUDISON DIGITALE FERNBEDIENUNG
Beschreibung:
DRC AB ermöglicht die Hauptsystemsteuerung (Lautstärke, Balance, Fader- und Subwoofer-Lautstärke, Bass-Boost) ohne Verwendung eines PCs. Dank dieses Geräts, das in einer ergonomischen Position im Armaturenbrett des Autos installiert ist, kann der Benutzer: zwischen den vier DSP-Voreinstellungen wählen und die Quelle zwischen Master, Auxiliary und den beiden optischen Digitaleingängen auswählen.
Maße: W x H x D (cm/inch): 6,3 x 3,6 x 1,2 / 2.48” x 1.4” x 0.47”
ISO-VERLÄNGERUNG EIN/AUS 260 CM/102 ZOLL
Beschreibung:
Prima Verlängerungskabel mit Plug&Play-Anschlüssen ermöglicht völlige Freiheit bei der Positionierung der AP-Bit-Verstärker. Es stehen zwei Erweiterungstypologien zur Verfügung: Nur Eingang , um nur das von der Haupteinheit kommende Audiosignal an die AP-Bit -Verstärker zu senden, oder Eingang/Ausgang, um auch das Ausgangssignal der AP-Bit-Verstärker an das Werks-Audiosystem zu übertragen. Dazu müssen die AP-Verlängerungskabel IN/OUT zusammen mit den AP-Lautsprecher-Ausgangskabeln installiert werden (siehe folgenden Abschnitt). Durch die Verwendung der Ein-/Ausgangserweiterung kann der Installateur frei wählen, welche Konfiguration er übernehmen möchte. Tatsächlich wird dank der AP-Verlängerungskabel jeder einzelne Kanal des AP-Bit-Verstärkers an einen der Lautsprecher im Auto gesendet, also die Der Installateur kann die gewünschte Konfiguration frei vornehmen. Zum Beispiel: Standard-Front (2ch TW+WF), Multi-Amplified-Front (2ch TW + 2ch WF), Multi-Amplified-Front mit 4 überbrückten Kanälen (130 W @ 4 Ohm) für die Woofer (2-Kanal TW + 4-Kanal Bridge WF) und alle die anderen möglichen Kombinationen.
Merkmale:
Gebaut mit verdrillten Kabeln: Zur effektiven Beseitigung von Störungen.
Drei verschiedene Längen: (1,6 mt, 2,6 mt und 5,6 mt) für jedes Fahrzeug geeignet.
Schnittfester Schutzschild
Hohe Flexibilität: Für maximalen Installationskomfort.
In/Out-Doppelstecker: Um auch das verstärkte Signal der AP-Bitverstärker zu empfangen.
Kein Löten erforderlich
Audison Prima AP Verbindungskabel für AP 4.9 bit, AP 5.9 bit und AP 8.9 bit DSP Verstärker mit den Kabeln AP SPK OUT 4.9, 5.9 oder 8.9
Je nach Fahrzeug werden noch T-Kabelsätze AP T-H benötigt.
Kompatibel mit:
AP 4.9 bit
AP 5.9 bit
AP 8.9 bit
AP SPK OUT
AP T-H
T-Kabelsatz für alle Fahrzeuge mit 52-poligen Powerquadlockstecker zur Verwendung mit den Audison AP bit DSP Verstärkern und den Audison AP P&P I/O Kabelsätzen.
Folgender Kabelweg: AP T-H AVS02 --> AP 160/260/560 P&P I/O --> AP SPK OUT 4.9/5.9/8.9 --> AP 4.9bit / AP 5.9bit / AP 8.9bit
T-Kabelsatz für alle Opel Fahrzeuge mit 44-poligen Radio Anschlußstecker zur Verwendung mit den Audison AP bit DSP Verstärkern und den Audison AP P&P I/O Kabelsätzen.
Folgender Kabelweg: AP T-H GMN01 --> AP 160/260/560 P&P I/O --> AP SPK OUT 4.9/5.9/8.9 --> AP 4.9bit / AP 5.9bit / AP 8.9bit

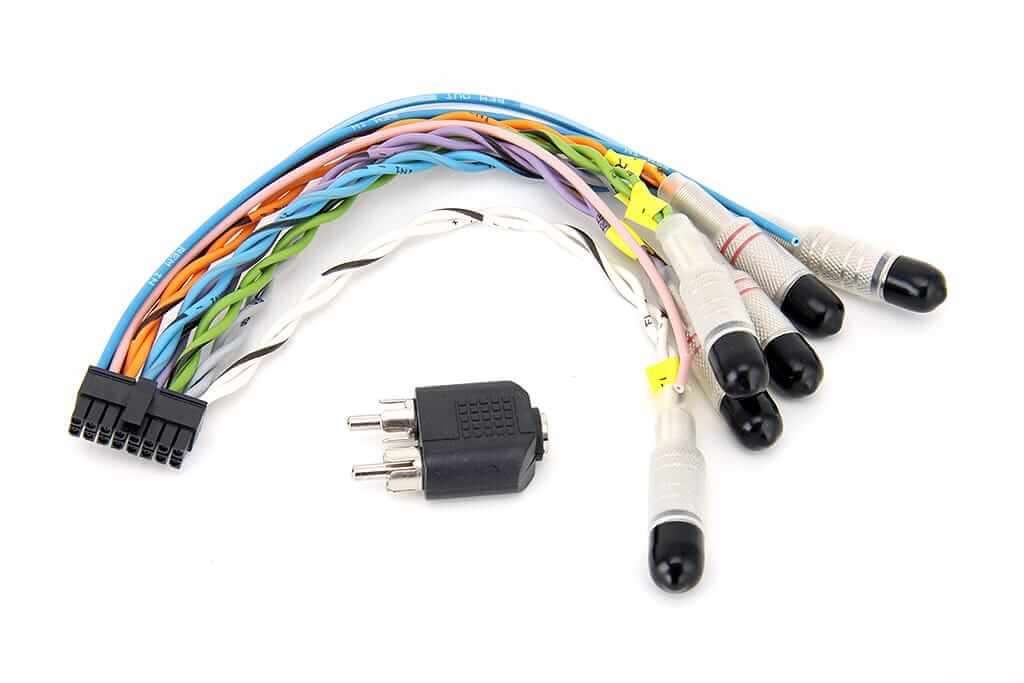

Audison 6 Kanal RCA Adapter Kabelset für die Prima AP bit Verstärker zum Anschluß an Geräte mit Cinchausgängen. Inkl. Adapter für 3,5mm Klinkenanschlüsse (AUX).
Eingang: FL/FR - RL/RR - IN1/IN2
T-Kabelsatz für alle Fahrzeuge mit 40-poligen Quadlockstecker zur Verwendung mit den Audison AP bit DSP Verstärkern und den Audison AP P&P I/O Kabelsätzen.
Folgender Kabelweg: AP T-H AVS01 --> AP 160/260/560 P&P I/O --> AP SPK OUT 4.9/5.9/8.9 --> AP 4.9bit / AP 5.9bit / AP 8.9bit
Audison Prima AP 8.9 bit Lautsprecher Anschlusskabel auf Rundstecker. Zum Plug and Play Anschluss in Verbindung mit den Kabelsätzen AP 160/260/560 P&P I/O.
Kompatibel mit:
AP 8.9bit DSP Endstufe
AP 160 P&P I/O
AP 260 P&P I/O
AP 560 P&P I/O

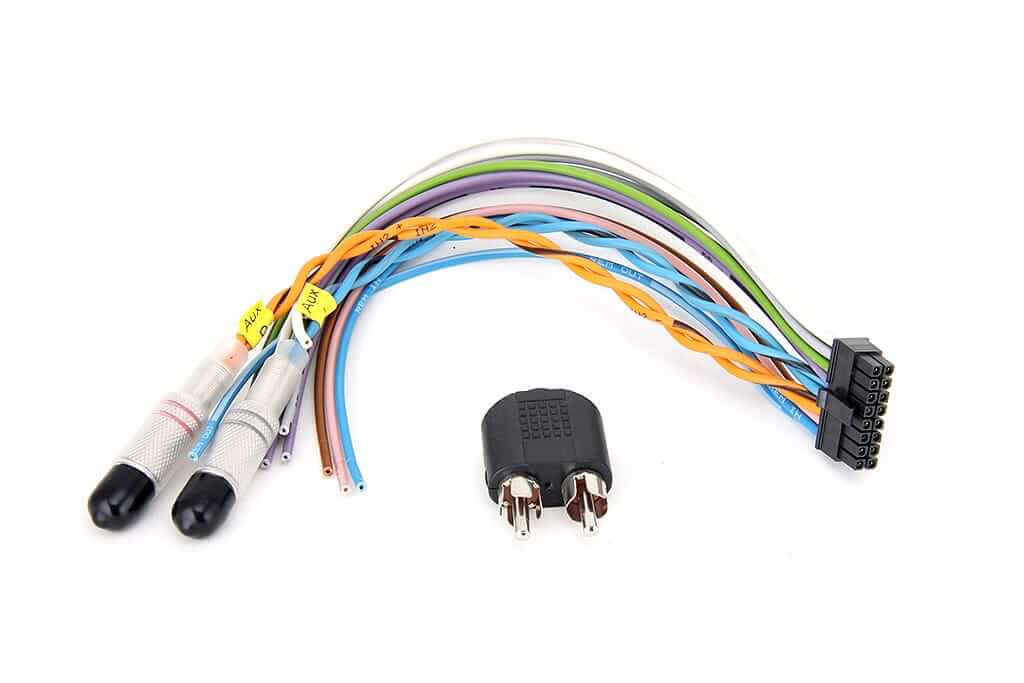

Audison 2 Kanal RCA Adapter Kabelset für die Prima AP bit Verstärker zum Anschluß an Geräte mit Cinchausgängen. Inkl. Adapter für 3,5mm Klinkenanschlüsse (AUX).
Eingang: FL/FR oder IN1/IN2
Audison Prima AP 5.9 bit Lautsprecher Anschlusskabel auf Rundstecker. Zum Plug and Play Anschluss in Verbindung mit den Kabelsätzen AP 160/260/560 P&P I/O.
Kompatibel mit:
AP 5.9bit DSP Endstufe
AP 160 P&P I/O
AP 260 P&P I/O
AP 560 P&P I/O
Link - Verbindungskabel für Audison Prima AP bit DSP Verstärker mit Prima AP bit Endstufen.
Soll an einem Prima AP 4.9bit oder 5.9bit eine AP 1D oder AP 4D angeschlossen werden wird dieses Kabel zur Verbindung benötigt.
Features:
Verbindung zwischen AP-bit DSP Verstärkern 4.9 oder 5.9 mit AP 1D oder AP 4D

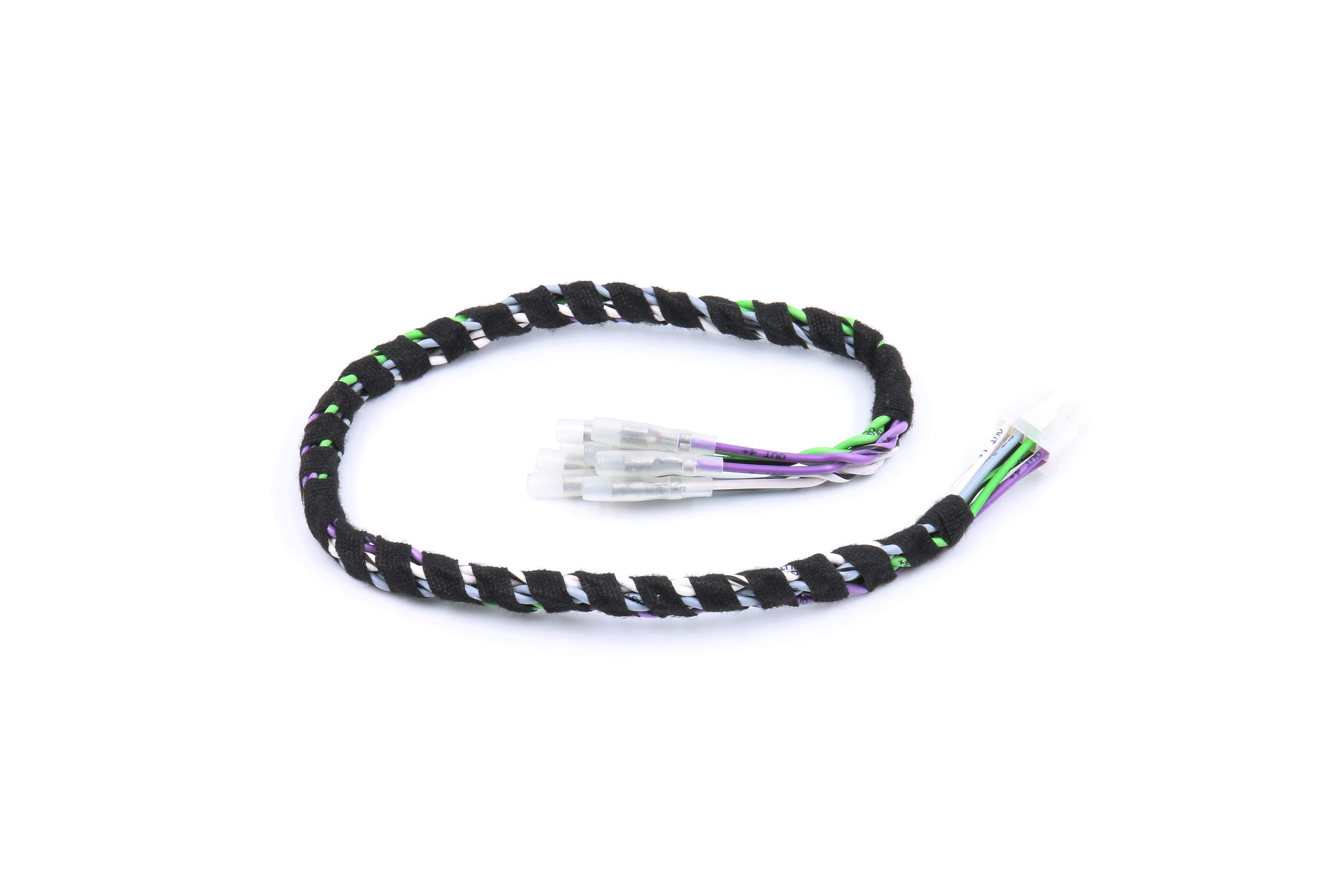

Audison Prima AP 4.9 bit Lautsprecher Anschlusskabel auf Rundstecker. Zum Plug and Play Anschluss in Verbindung mit den Kabelsätzen AP 160/260/560 P&P I/O.
Kompatibel mit:
AP 4.9bit
AP 160 P&P I/O
AP 260 P&P I/O
AP 560 P&P I/O
