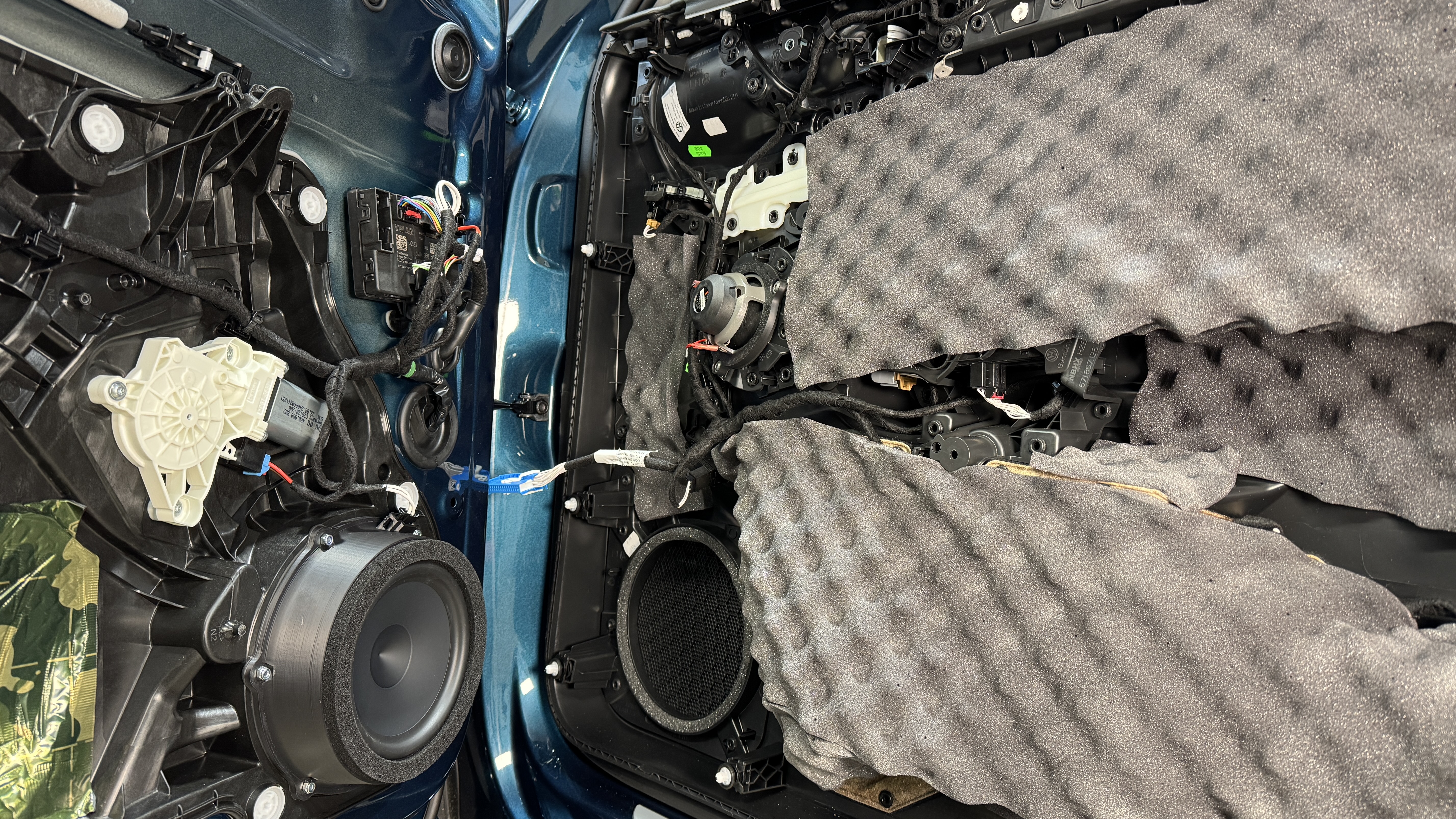

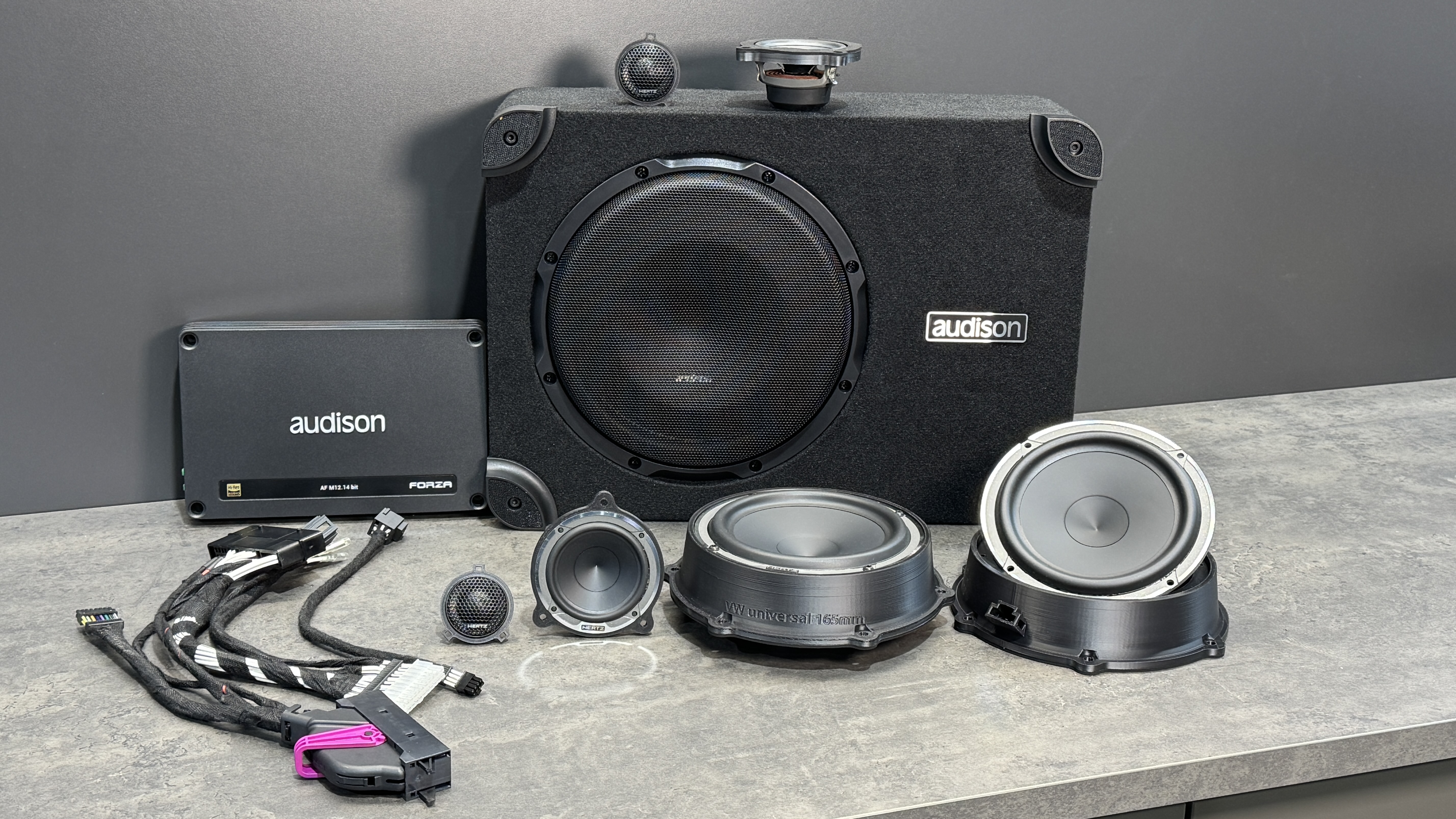

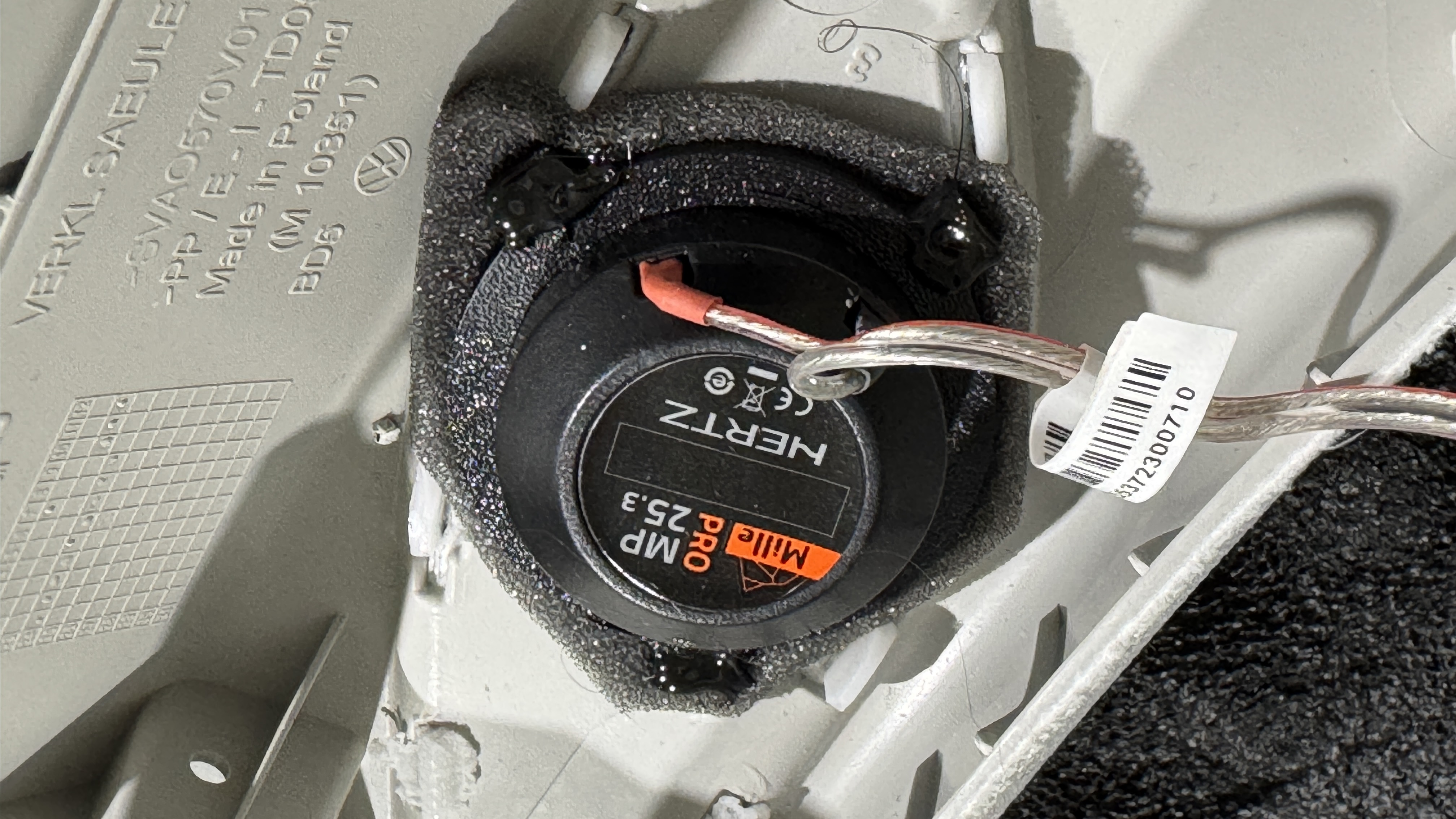

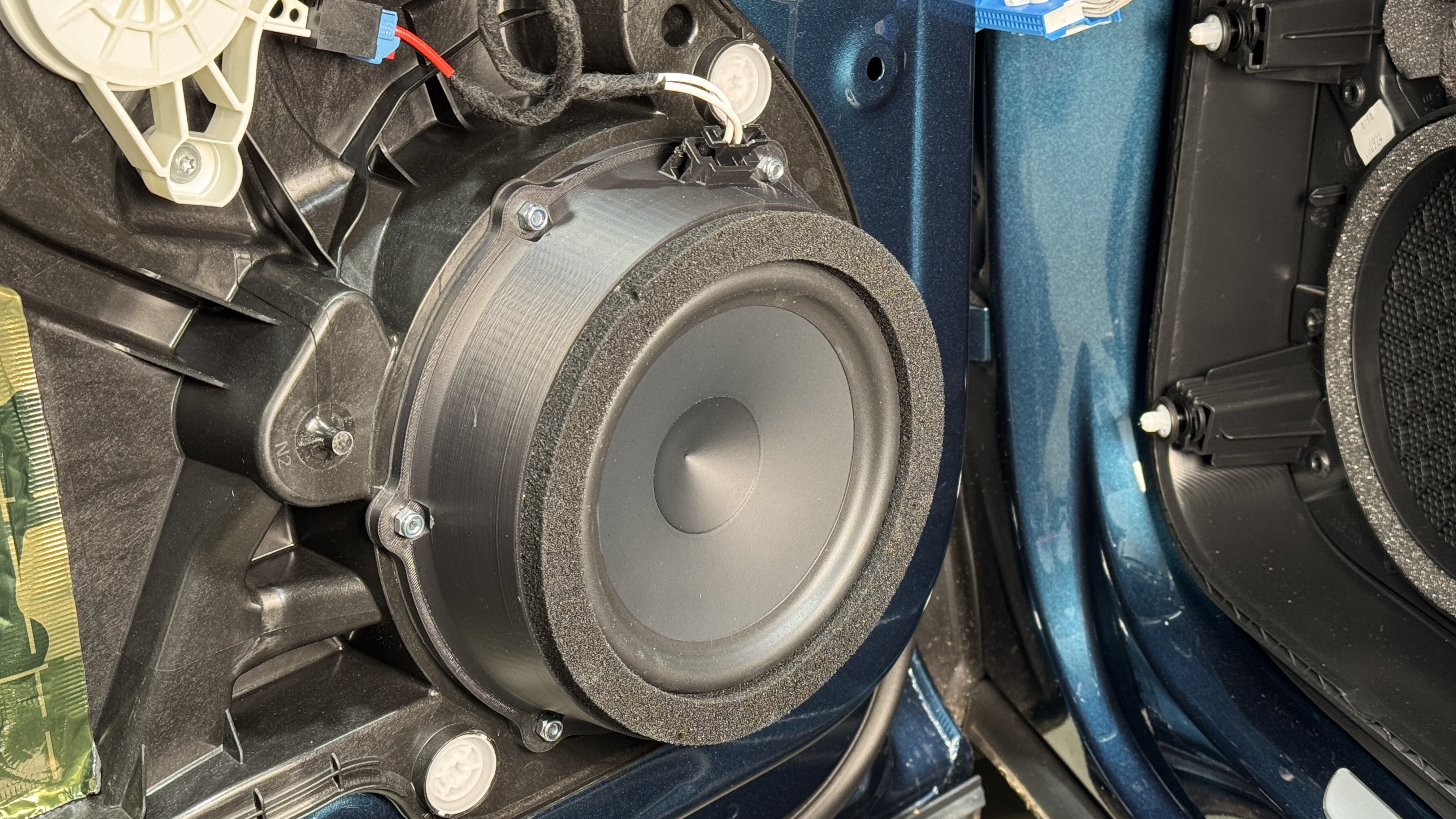

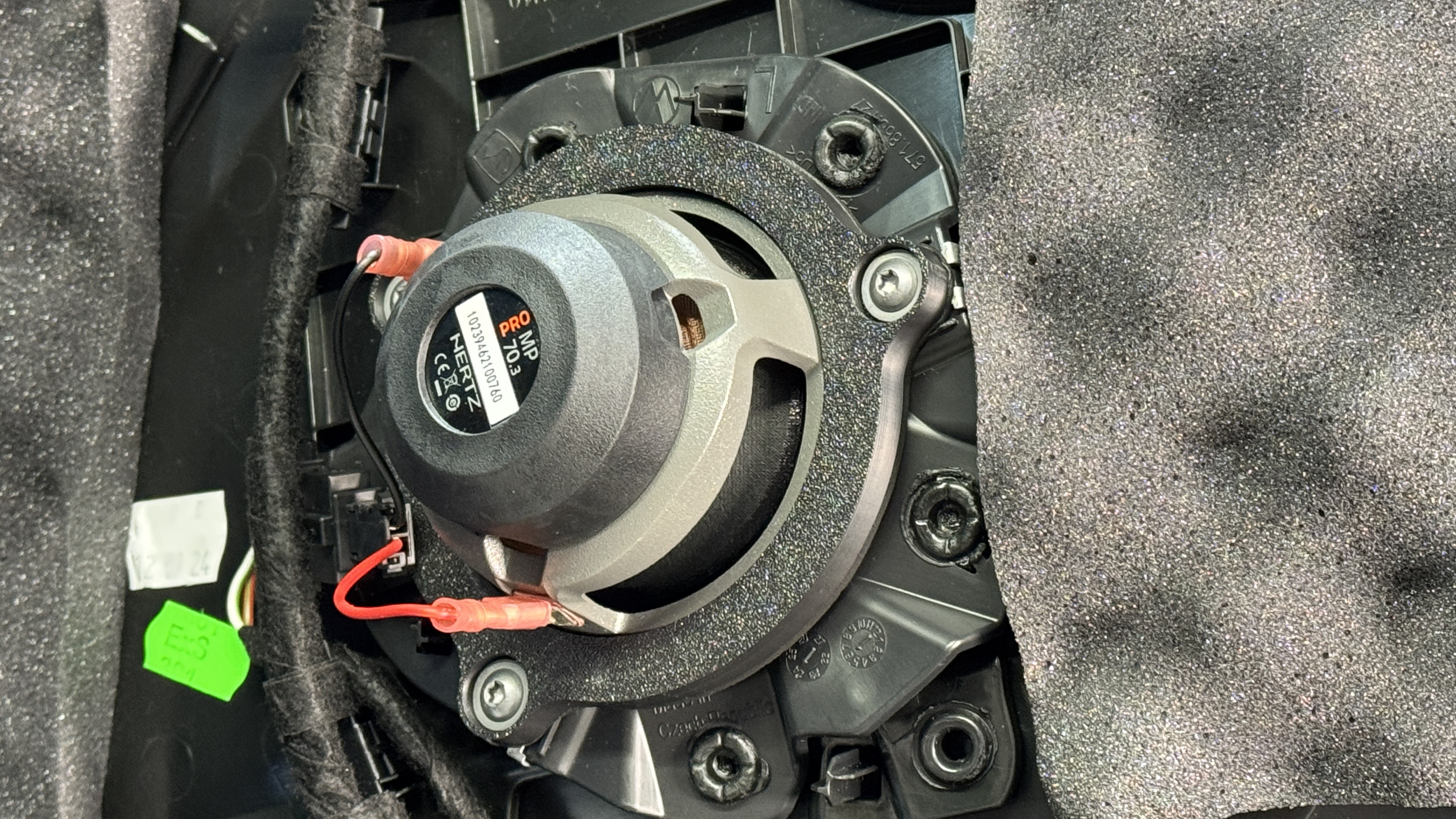

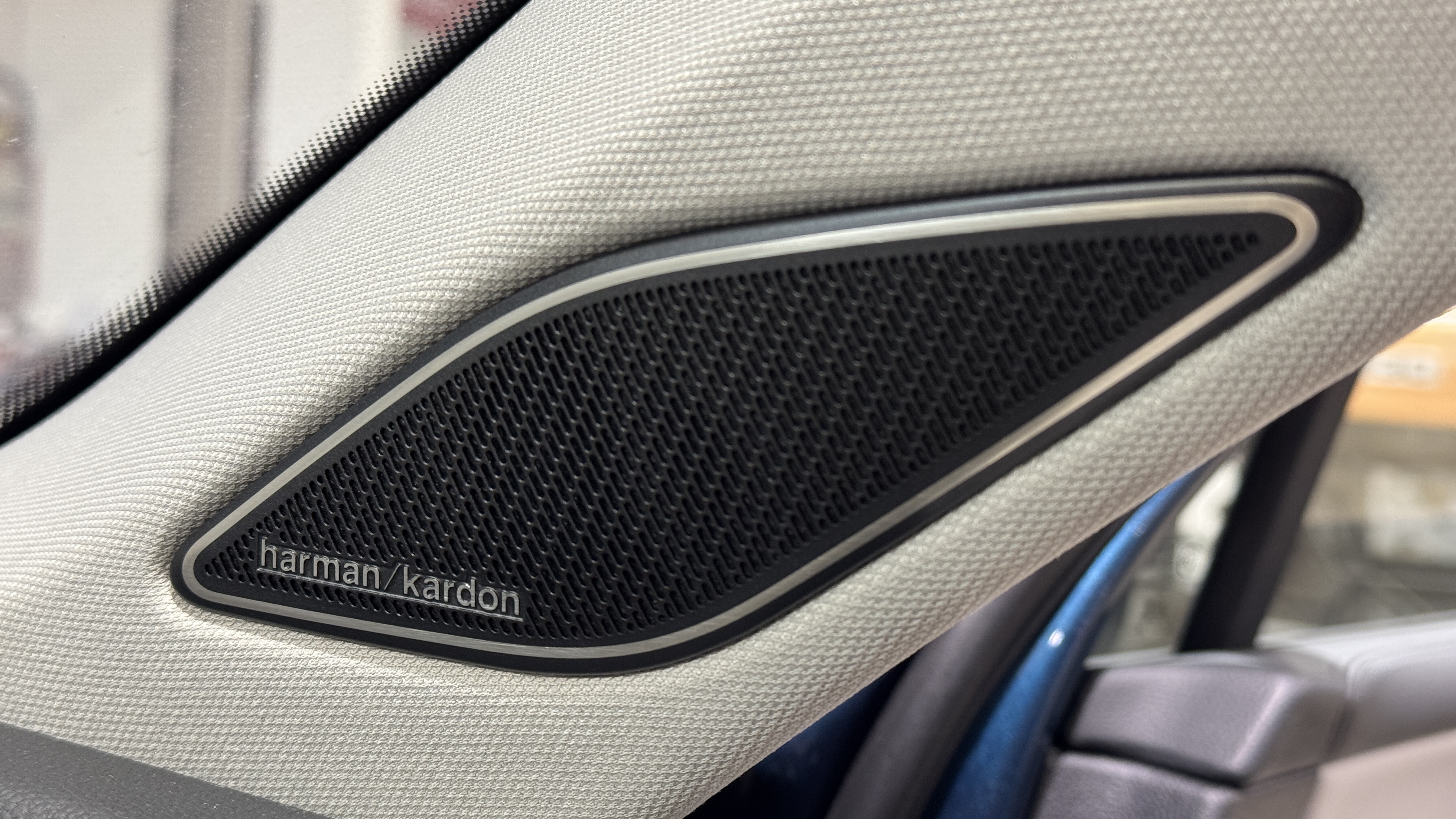

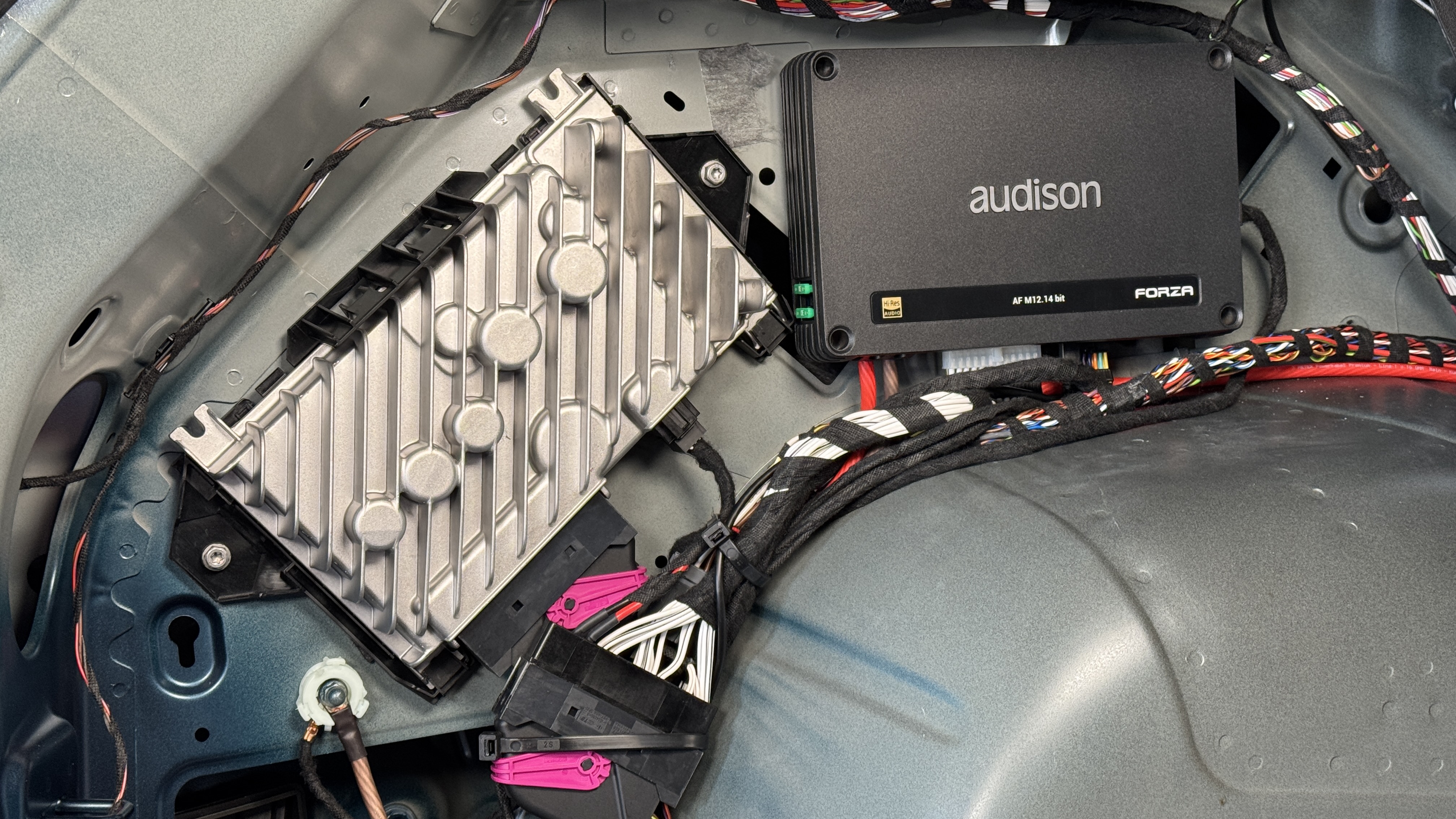

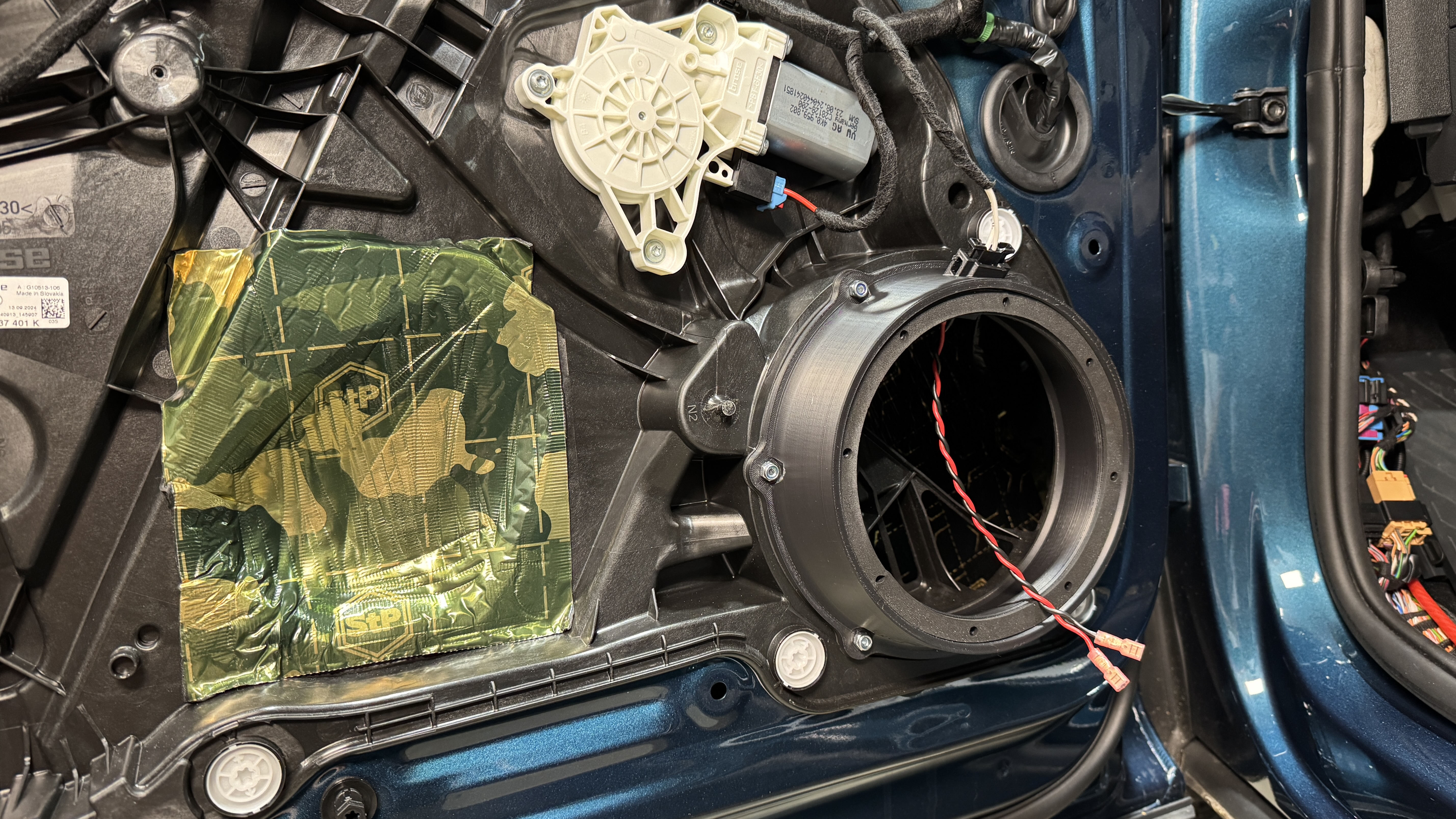

Fahrzeugspezifisches High End Soundsystem passend für den VW Tiguan III ab 2024 mit werksseitigen Harman-Kardon System   Komplettes und extremst klangstarkes Upgrade Set für allerbesten Sound im VW Tiguan III mit Harman/Kardon ab Werk. Nur beste Komponenten mit einem für uns sehr guten Preis/Leistungsverhältnis sind in diesem Soundsystem enthalten. Basis ist die Audison Forza M 12.14bit welche alle Kanäle des H/K Systems aufnimmt und deutlich verstärkt. Mit dem Hertz Mille MP Pro Frontlautprechern auf stabilen 3D Druck Adaptern, Türdämmung und leistungsstarkem Audison APBX Subwoofer sowie der Option auf hintere neue Lautsprecher kann die DSP Endstufe ihr volles Potential entfalten. Druckvoll, sauber, hochdynamisch, kein Vergleich zum doch recht mauen H/K Werkssystem.   <div class="box info alignleft"><div class="box-inner-block"><i class="icon--info2 infoicon"></i>Das System kommt komplett einbaufertig und wertet den Klang im Volkswagen Tiguan 3 mit H/K deutlich auf. Die hörbar bessern Lautsprecher in Verbindung mit der Türdämmung bringen mehr Druck und Pegel ins Fahrzeug, woran auch die leistungsstarke Audison DSP Endstufe einen großen Anteil hat, und Dank dem 25cm Subwoofer gibt es ein stabiles und stattes Tieftonfundament.</div></div>  Hinweise zum Einbau: Es müssen die alten Lautsprecher ausgenietet werden, die  FlexMount Adapterringe werden dann am original Einbauplatz verschraubt. Der Hochtöner wird an Stelle des alten in die Aufnahme befestigt (etwas Heißkleber ist notwendig) und den neuen Kabeln angesteckt. Das Endstufen Systemkabel wird an der H/K Verstärkereinheit im linken Seitenteil und an der Batterie angeschlossen, die Endstufe neben dem Harman Verstärker befestigt. An dieser wird noch das Wooferkabel angesteckt und in den Kofferraum zum neuen Subwoofer verlegt. Was man an Werkzeug haben sollte: Akkuschrauber Torxschraubendreher Bohrer und Bits Inbusschlüssel Plastikkeile Technische Daten des Sets: 12-Kanal DSP Endstufe mit 720W perfekt abgestimmter DSP 25cm Subwoofer (APBX 10 S4S) 165mm Mille Pro Tieftöner 70mm Mille Pro Mitteltöner 25mm Mille Pro Hochtöner Dämmset (1x STP Gold, 1x Bomb, 3x Bromo) FlexMount 25, 70 und 165 Adapter inkl. Terminal Dichtringe Plug&Play Kabelsatz alles zu 100% rückrüstbar

AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING. 12 CHANNELS AMPLIFIER WITH DSP - 1080W   Discription: More Power More Information More Control More Inputs More Speed More Tools More Capabilities More Guidance More Flexibility all in one state-of-the-art platform!   AUDIOPHILE SOUND YOU EXPECT FROM AUDISON AF M12.14 bit boasts twelve high-fidelity amplified channels 60 x 12 @4Ω*, 90W x 12 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 180 x 6 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections! *Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.   NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The two processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.   ADVANCED OEM INTEGRATION CAPABILITIES Forza’s eight analog inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems.  If more analog inputs are required, the optional F4IN expansion card adds four additional analog input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation technology (USS) yields maximum compatibility with any OEM Source, without muting or instability.   AF M12.14 bit includes a set of four high-quality cables supplied with a protective printed strip placed upstream of the Molex connectors to increase the resistance to torsion:   One 8 stereo RCAs interconnection for after-market sources with PRE-OUT outputs One featuring 8 pairs of labeled cables for the connection to high-level output OEM sources One includes twelve pairs of labeled cables to connect the speakers to the amplifier One Control interconnection to control memory selection and remote power-on.   Technical Specification: POWER SUPPLY Nominal power supply voltage / fuse:  11 ÷ 15 VDC / 2 x 30A Pulse operating voltage: 6.5 ÷ 17.5 VDC Idling current: 1.68 A Standby current draw: 1.7 mA Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 45 A Remote IN: 4 ÷15 VDC (1 mA) Remote OUT: 6.5 ÷15 VDC (150 mA) ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 80% AMPLIFIER STAGE Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.03% Damping factor @ 1 kHz , 4Ω, 2 VRMS: 80 Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98 dBA S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA Minimum load impedance: 12Ch: 2Ω 6Ch – (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12): 4Ω Output Continuous Power (RMS) @14.4 VDC, 1% THD: · 12 Ch @ 4Ω: 60 W x 12 · 12 Ch @ 2Ω: 90 W x 12 · 4Ch (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4Ω: 180 W x 6 CEA SPECIFICATIONS Output power @ 4Ω, 1% THD+N, 14.4 V: 45 W SN ratio (ref. 1 W output): 75.5 dB INPUTS / OUTPUTS Pre-In (8 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.) Speaker-In (8 Ch + additional 4 Ch with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.) Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card DSP Preout (2 Ch): 5V RMS DIGITAL SIGNAL PROCESSOR Audio DSP and converters: Analog Devices ADAU1467 automotive qualified audio processor. Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance Filter type: Full / High-Pass / Low-Pass / Band-Pass Filter mode and slope: Linkwitz-Riley @ 12/24/36/48 dB/Oct. Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct. Bessel @ 6/12/18/24/30/36/42/48 dB/Oct. Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct. QLP @ 6 dB/Oct. Crossover frequency: 20 Hz ÷ 20 kHz Phase control: 0° / 180°, All-Pass filters Analog Input Equalizer (20 Hz ÷ 20 kHz): 12 Biquad + Delay Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz Input and Output Real Time Audio Monitor: RTA Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches Time Alignment Delay: 0 ÷ 15 ms CONTROL CONNECTIONS Audison DRCC port: Input for DRCC remote control (Optional) Audison ADC port: Manage other Audison devices that support this standard Control 1 wire: Customizable functions (+ 12 V activated) Control 2 wire: Customizable functions (+ 12 V activated) GENERAL REQUIREMENTS PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible Software/ PC requirements: Windows 10, Windows 11 (min. res. 1024 x 768 Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F) SIZE / WEIGHT Max size W x H x D (cm/inch): 24,0 x 4,7 x 15,6 / 9.44 x 1.85 x 6.14 Weight (kg/lb): 2,04 / 4.49   FEATURES: adt: Enjoy the improved audio performance of the latest generation Audison D-Class technology. Fully bridgeable: Maximum versatility thanks to the bridging option for each pair of channels. dpd: Forza amplifiers have two independent power supplies: the audio amplifier power supply is loosely regulated, which allows superior dynamic performance. The DSP power supply is stiffly regulated, which maintains DSP microprocessor operation even during lower-voltage transient states (i.e., start/stop operation). Hi-Res: Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz. Full DA HD: Pure digital signal transfer with a resolution up to 24bit/96 kHz. qio: Quick I/O Configuration speeds up system definition and signal routing. absolute Volume: When connected with Audison B-CON hi-res Bluetooth receiver, this feature manages the Master Volume of the Forza amp thus ensuring full dynamic range signal at the input. maestro AR: iDatalink Maestro AR native support for a total integration with OEM infotainment. 8 inputs: Equipped with eight analog inputs, to support total connectivity even with the most complex OEM systems. esa: Electrical Signal Analysis ensures proper integration and correction for each input channel. de-eg: Automatically sums and reverses OEM equalization. de-time: Input delay compensation of time-delayed factory outputs prior to signal summing. de-phase: Allows left and right inputs to match in phase before tuning, even if OEM phase processing has been used. USS: Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source. bit-Drive: Next-generation bit Drive software platform - developed for this family of products - simplifies every control and function. 14 dsp outputs: 14 DSP-processed output channels for a total control. arta: The acoustic analysis integrates the response graph into the equalizer display ensuring efficient tuning and great sound, compatible with any 24-bit USB microphone. erta: The electrical analysis integrates the response graph into the input equalizer display, ensuring efficient tuning.

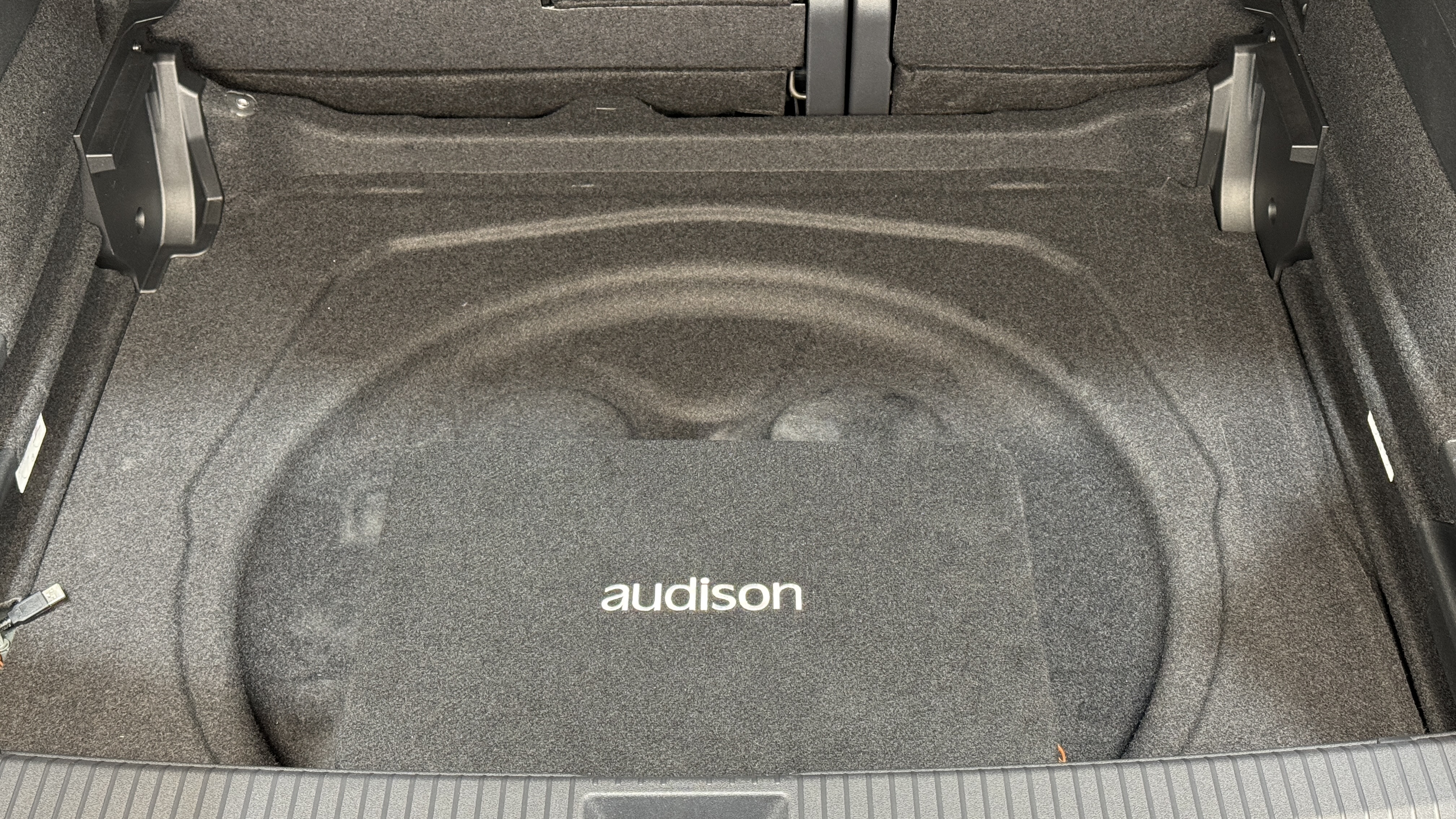

25cm 4 Ohm Subwoofer im kompakten geschlossenen Gehäuse mit hohem Wirkungsgrad und geringer Abmessungen.   Der audison APBX 10 S4S Subwoofer im 12 Liter Gehäuse braucht nur sehr wenig Stellfläche und bietet richtige Basspower im unteren Frequenzbereich, ideal geeignet für die audison AP 8.9bit und AP 5.9bit Endstufen. Alles wurde optimiert um maximale Perfomance bei geringstem Platzbedarf zu erreichen. Der Subwoofer kann durch Montage von Füßen auch umgedreht verbaut werden, ist so sehr flexibel verbaubar. Durch ein intelligentes Anschlussterminal läßt sich der Woofer einfach an einer entsprechenden Endstufe anschliessen.   Technische Daten: 25cm Subwoofer 4 Ohm Impedanz RMS Belastbarkeit 400W Schwingspule 60mm Abmessungen: L X B x H: 472 x 334 x 120mm Lieferumfang: 1 Stück APBX 10 S4S Gehäuse Subwoofer
